Bocchetta d'immissione Multiflow in ABS per incollaggio per piscina in cemento Astralpool bianco 63 mm

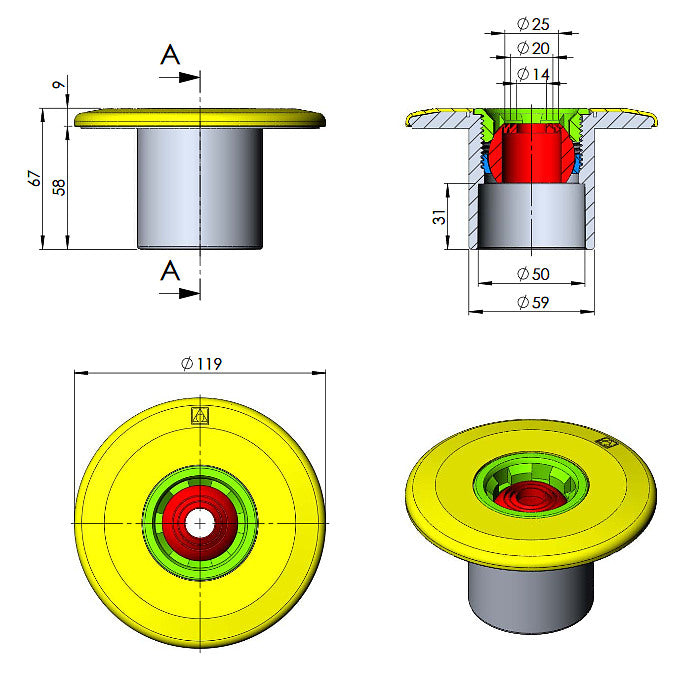

Bocchetta d'immissione Multiflow in ABS per incollaggio per piscina in cemento Astralpool bianco dimensioni

SKU:00298

Astralpool ABS Multiflow inlet nozzle for gluing, concrete pool

Name: Astralpool ABS Multiflow inlet nozzle for gluing, concrete pool
Brand: Zavatti Shop
SKU: 00298
Price: 19.00 EUR
Availability: InStock

Multiflow inlet / outlet nozzle for gluing, in white ABS, for reinforced concrete swimming pools.

Product variants:

Descrizione

Version for tiled or painted reinforced concrete pools.

Astralpool Multiflow inlet nozzle, made of ABS with UV protection.
For external gluing Ø 63 mm, PN 6 and internal Ø 50 mm.

MULTIFLOW SYSTEM
New system consisting of a pre-marked sphere of different diameters (14, 20 and 25 mm).
With the help of a punch and a mallet, it is possible to select one of the diameters during installation, thus obtaining different flow rates.
Maximum recommended flow rate for a maximum speed of 4 m/sec, according to the EN 13451-1 standard:
Ø 14 mm = 2.2 m3/h
Ø 20 mm = 4.5 m3/h
Ø 25 mm = 7 m3/h
