Lumilink Bluetooth module for Seamaid pool lights

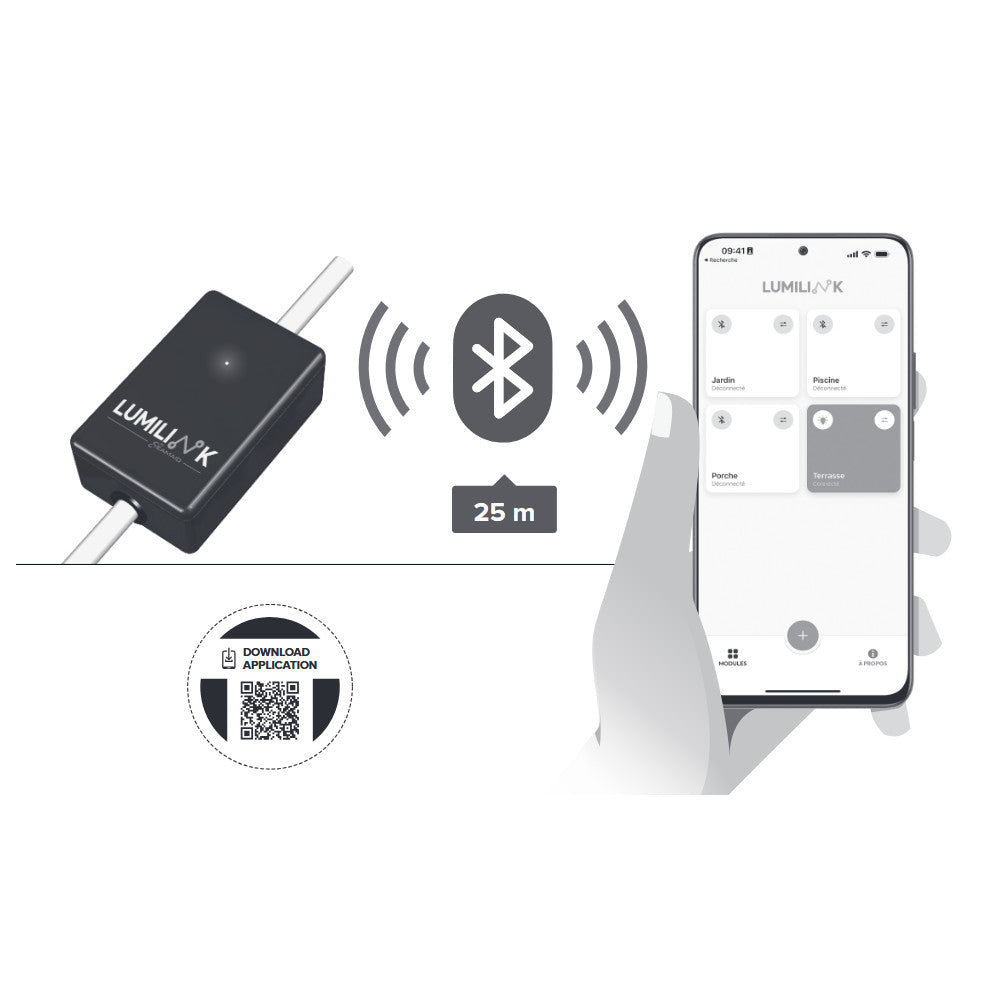

With Lumilink you can manage Seamaid LED pool lights thanks to the Bluetooth module and the Lumilink App (compatible with all smartphones).

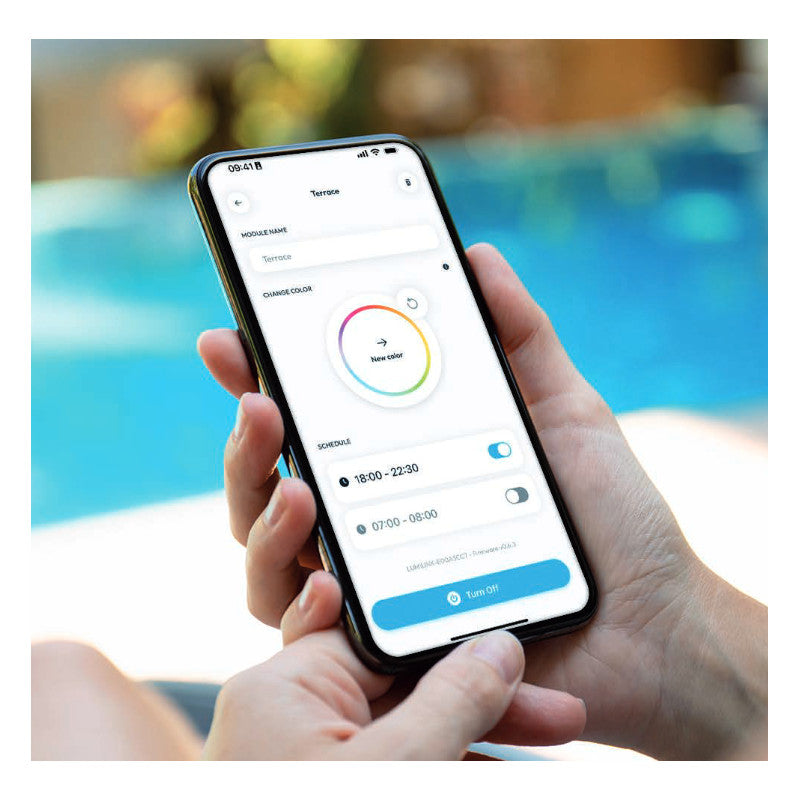

Thanks to the App it is possible to control switching on, off and colour selection (in RGB lamps).
LUMILINK can also be compatible with any other lighting fixture that operates in the same voltage and current ranges.
It should ideally be installed in the junction box.

Technical features:
• Bluetooth version: 5.0
• EIRP Max: Bluetooth LE 8.23dBm
• Input / Output: ~12V(AC) or 12V(DC) to 24V(DC)
• Max output current: 4A
• Consumption: 1W
• Protection: IP67

The Lumilink is limited to 40W (e.g. 3 white PAR56s or 2 RGB PAR56s or 5 tubular lights).

If you have both RGB and white lamps with a total power greater than 40W, we recommend installing two Lumilinks, one for the RGB lamps and one for the white ones. The two devices can be controlled separately with a single app.

If the total power consumption of all the headlights does not exceed 40W, you can install a single Lumilink. In this case, every time the RGB headlights change color or sync, the white headlights will also turn off and on again.
