Complete Fiberpool 10 MC/H filtration system with 0.75 hp DAB pump

Swimming pool filter unit complete with a 10 mc/h Fiberpool sand filter and a 0.75 HP Dab Euroswim 75 pump.
The perfect combination, entirely Made In Italy, for water that is always perfectly filtered.

PROFESSIONAL PRODUCT.
10-year warranty on the fiberglass filter tank.

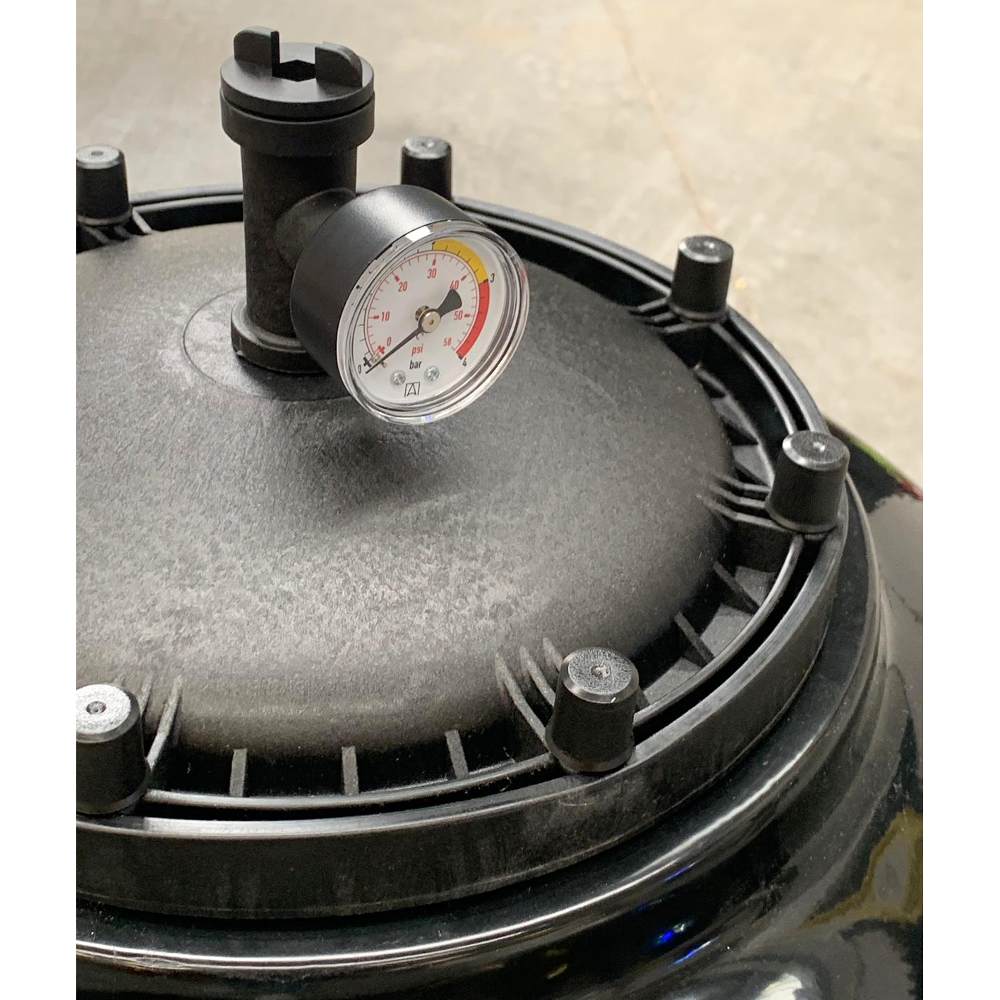

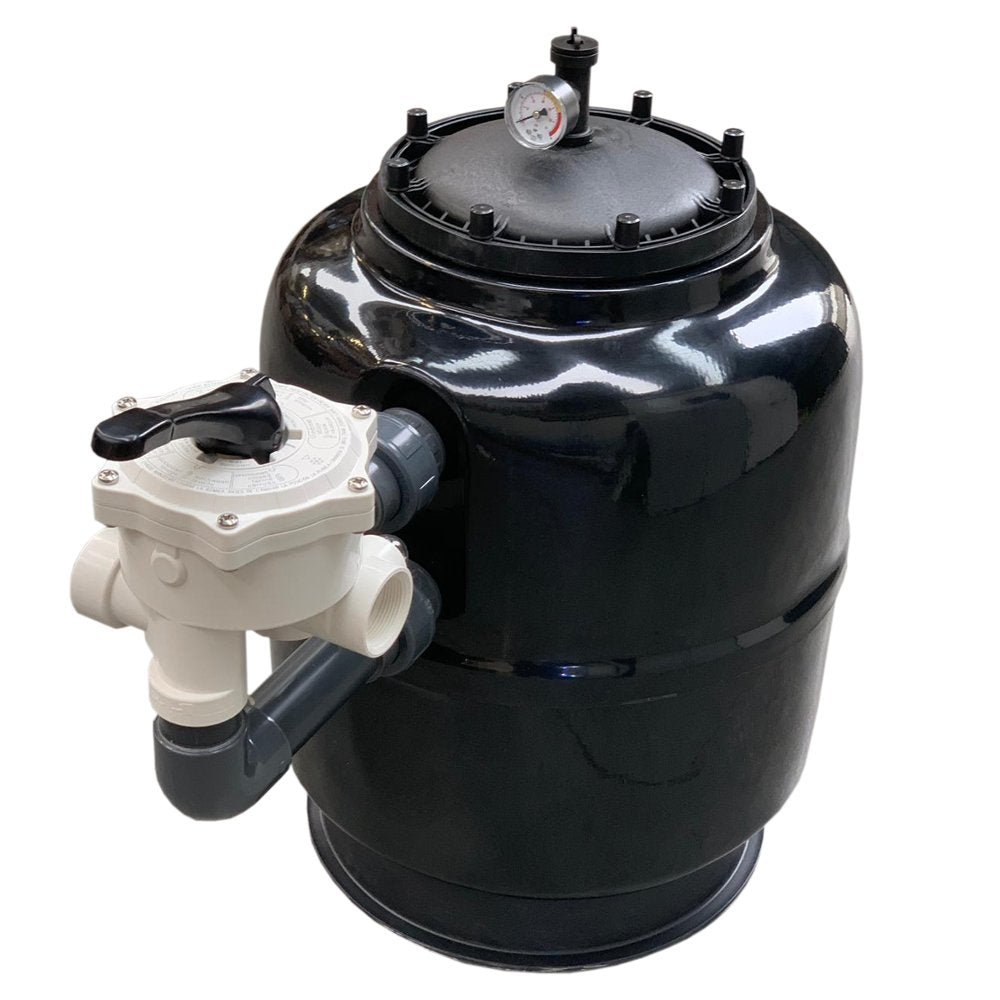

CHARACTERISTICS OF THE FIBERPOOL 10 MC/H SWIMMING POOL SAND FILTER

High-quality fiberglass Fiber Pool sand filter. Hand-layered to ensure maximum chemical and mechanical resistance.
All internal parts are made of PP, ABS, and PVC. All bolts are made of high-resistance INOX material against corrosion and mechanical load, and the nuts are nickel-plated brass.

Supplied pre-assembled and with a selector valve. Lateral distribution system.

• Valve = 1.5" connections
• Internal Ø = 480 mm
• Flow rate = 10 mc/h
• Number of sand bags = n. 4 x 25 kg (not included)

The color of the filter and valve may vary.

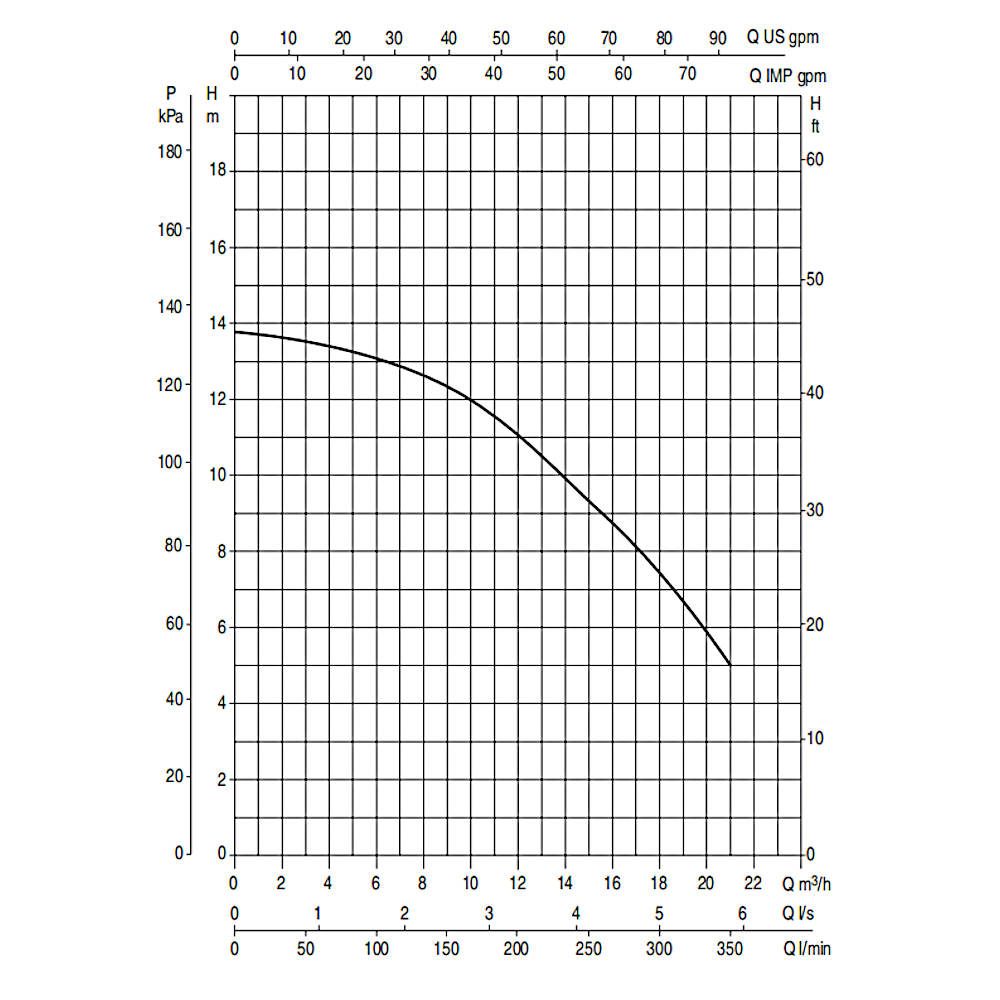

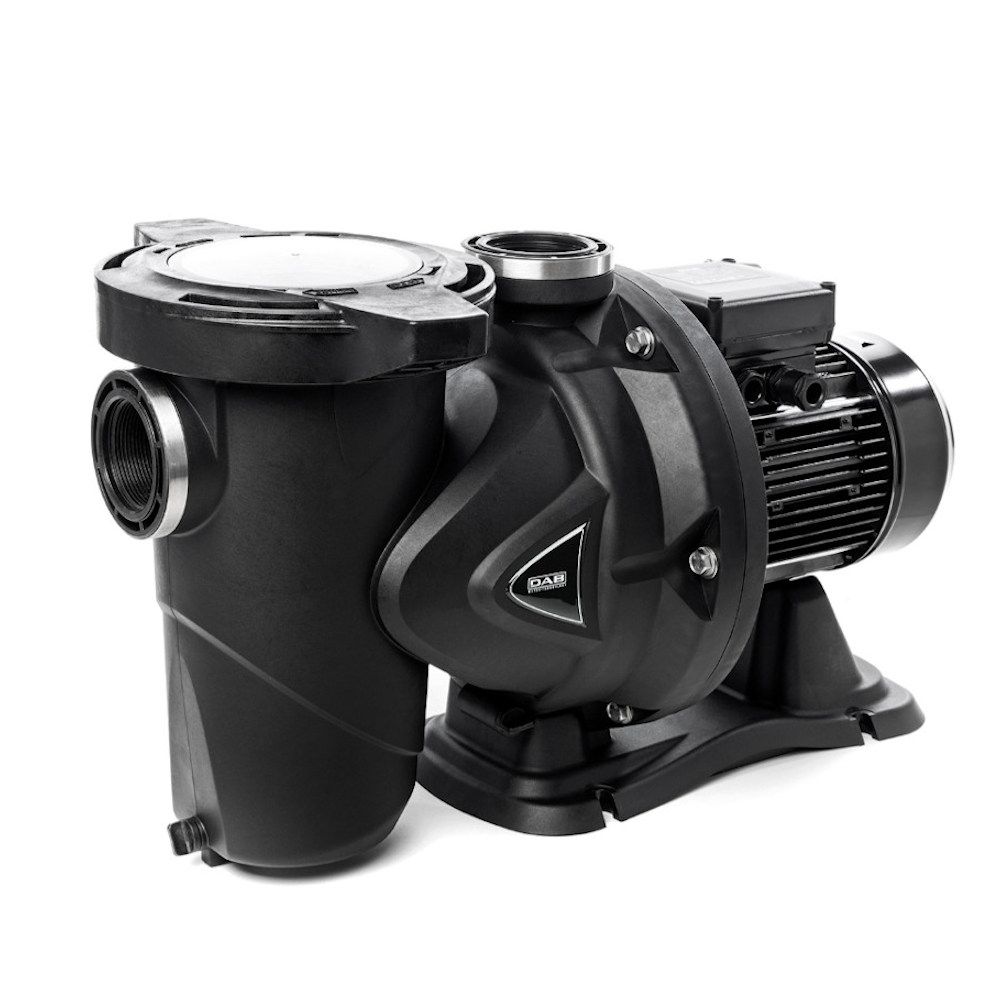

CHARACTERISTICS OF THE DAB EUROSWIM 75 – 0.75 HP FILTRATION PUMP

Available in SINGLE-PHASE or THREE-PHASE versions.
Specify the desired model in the order notes.

High-efficiency self-priming centrifugal pumps with a large capacity built-in pre-filter.
Motor completely isolated from water. Extremely quiet and highly reliable, designed for water circulation and filtration in domestic and residential swimming pools.

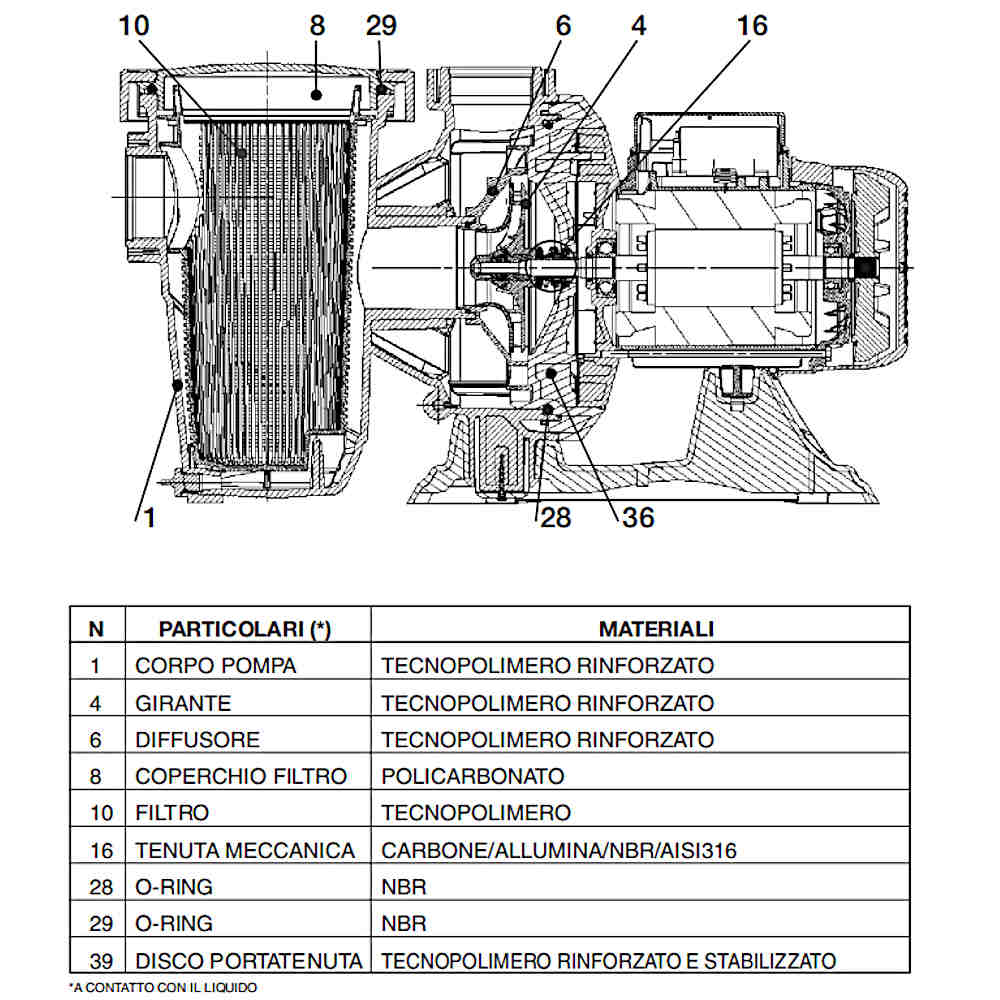

Pump construction features
- Pump body and pre-filter ring nut made of techno-polymer reinforced with glass fibers
- Transparent and anti-oxidation pre-filter cover to ensure constant visibility over time
- Nylon filter
- Impeller made of techno-polymer reinforced with glass fibers, designed to ensure complete coverage and isolation of the motor shaft from the pumped liquid
- Diffuser made of reinforced techno-polymer
- Mechanical seal in carbon / alumina / NBR / AISI 316
- O-ring pump body in NBR, screws and reinforcement rings in AISI 316 steel
- Butterfly fill and drain plugs that do not require tools for removal and repositioning



Motor construction features
- 2-pole continuous duty (S1) asynchronous motor
- Die-cast aluminum motor casing with cataphoretic surface treatment to prevent oxidation even in aggressive environments
- Support base supplied as standard with rubber feet to reduce vibrations
- Single-phase version with built-in thermal-amperometric protection and permanently inserted capacitor (PSC), internally assembled in the terminal box for all versions.


Degree of protection of the motor and terminal box: IP55
Insulation class: F
Ball bearings: waterproof – sealed, resistant to water and humidity.
Motor construction according to EN 60335-2-41 standards
Standard voltage: - Single-phase 220-240V 50Hz

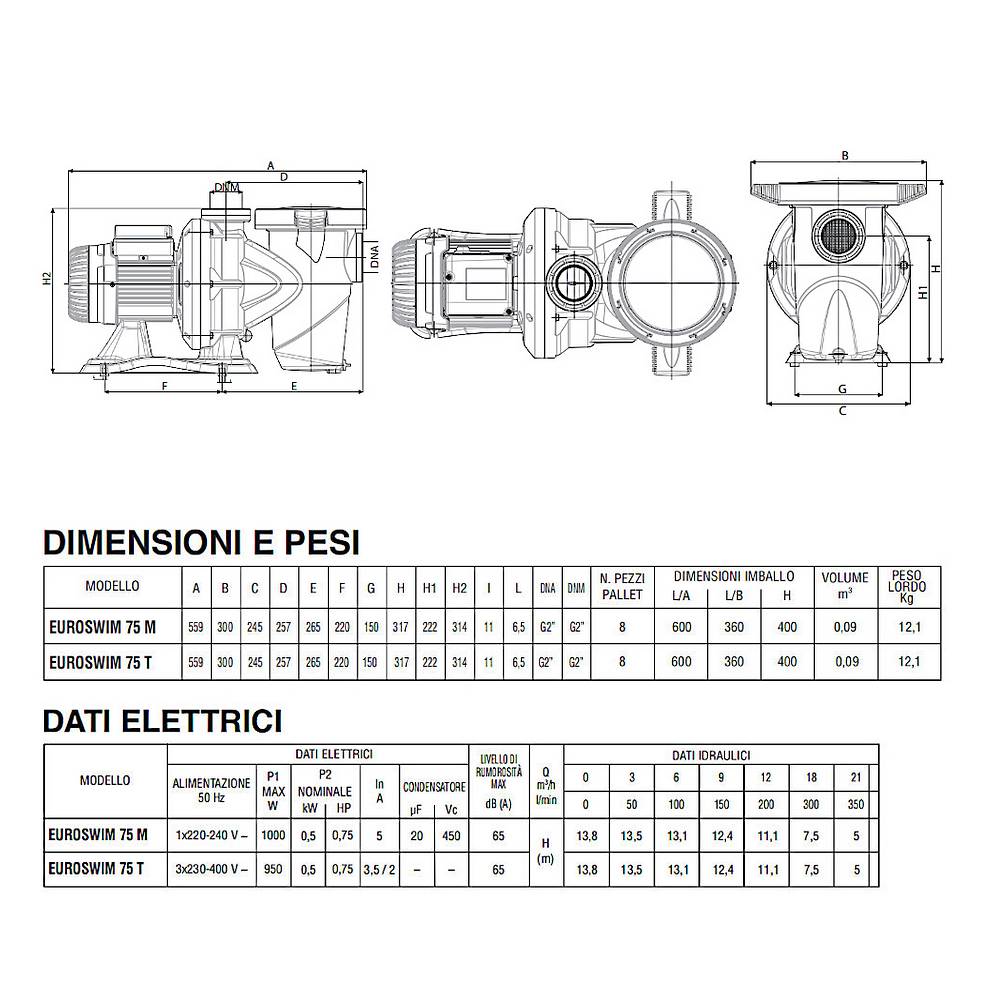

TECHNICAL DATA:
- pH range = 6.5 - 8.4
- Liquid temperature range = up to 60 °C
- Maximum ambient temperature = 50 °C
- Maximum operating pressure = 2.5 Bar
- Nominal operating pressure = 0.8 - 1.2 Bar (ideal 1 Bar)
- Installation = Fixed or portable in horizontal position
- Reference standard = IEC - 60364
