Dab E.Swim 150 Variable Speed Filtration Pump

Dab Eswim 150 is an electronic pump with an inverter for pool filtration.

It is also suitable for saltwater pools.
- Quiet.
- Programmable.
- Equipped with a large, inspectable pre-filter.
- Compatible with any control panel, both analog and digital.

Also available in the SVRS VERSION.
The SVRS (Safety Vacuum Release Systems) software disables the pump's suction capability so that any body or object trapped against the suction outlet is released, thereby ensuring peace of mind and comfort of use.

PUMP CONSTRUCTION FEATURES
Transparent polycarbonate pre-filter cover made of antioxidant material for quick and easy visual inspection.
Equipped with rubber feet to reduce vibrations.
Bayonet lid closure.

MOTOR CONSTRUCTION FEATURES
Synchronous permanent magnet motor, brushless, with magnetized encapsulated rotor, cooled by the pumped liquid, without a cooling fan, with a noise level of only 45 dB.
The aluminum motor housing is coated with elastomer.

PROGRAMMING AND CONTROL
- Possibility of remote control via 0-10 V, 4-20 mA, and PWM signals.
- Equipped with an inverter: through which the pumps can operate at constant speed or constant flow (without the use of sensors) to optimize performance and minimize energy consumption.
The control panel has 4 buttons with 8 programmable speeds and status and alarm indicator LEDs.
- A menu for weekly and seasonal programming is available.

TECHNICAL DATA

Minimum and maximum flow rate: 30 m3 /h
Maximum head: 15.4 m
Type of pumped liquid: clean or slightly dirty water with suspended solids, long fibers; particularly aggressive water with high percentages of chlorine/bromine and PHMB (Polyhexamethylene Biguanide) or water treated with the chlorine electrolysis process
Supported pH: 6.5 - 8.4
Minimum and maximum liquid temperature supported: from +4°C to +40°C
Maximum ambient temperature: +50°C
Maximum operating pressure bar / kPa: 2.5 bar / 250 kPa
Motor protection rating: IP X5
Motor insulation class: F
Impeller construction material: technopolymer
Single-phase power supply: 230 V 50 Hz or 60 Hz
Power cable (m) and plug: not supplied
Possible installation type: fixed or portable in a horizontal position
Certifications: Energy Star, SVRS (SVRS version only)

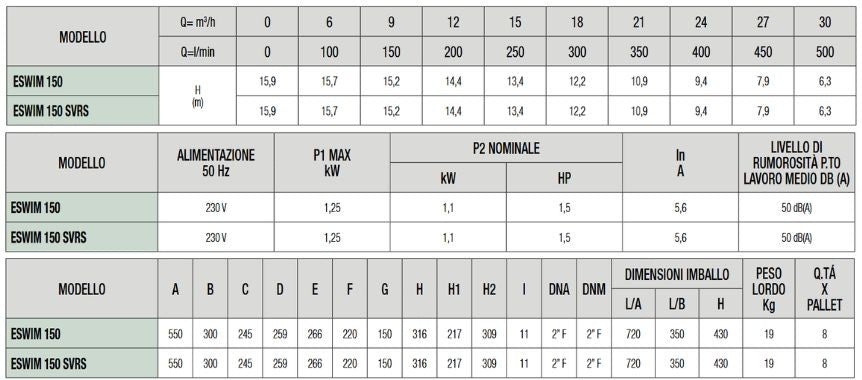

TECHNICAL CHARACTERISTICS OF THE DAB E.SWIM 150 VARIABLE SPEED PUMP
