Dab Euroswim 75 Filtration Pump - 0.75 HP THREE-PHASE

THREE-PHASE VERSION

High-efficiency self-priming centrifugal pumps with large capacity built-in pre-filter.
Motor completely isolated from water. Extremely quiet and highly reliable, developed for water circulation and filtration in domestic and residential swimming pools.

Pump construction features
- Pump body and pre-filter ring nut in glass fiber reinforced technopolymer
- Pre-filter cover in transparent, anti-oxidation polycarbonate to ensure constant visibility over time
- Nylon filter
- Impeller in glass fiber reinforced technopolymer, developed to ensure total coverage and isolation of the motor shaft from the pumped liquid
- Diffuser in reinforced technopolymer
- Mechanical seal in carbon/alumina/NBR/AISI 316
- NBR pump body O-ring, screws and reinforcing rings in AISI 316 stainless steel
- Butterfly fill and drain plugs that do not require tools for removal and repositioning

Motor construction features
- 2-pole continuous duty (S1) asynchronous motor
- Die-cast aluminum motor casing with cataphoresis surface treatment to prevent oxidation even in aggressive environments
- Support base supplied as standard with rubber feet to reduce vibrations
- Three-phase version with built-in thermal-amperometric protection and permanently connected capacitor (PSC) internally assembled in the terminal box for all versions.

Motor and terminal box protection degree: IP55
Insulation class: F
Ball bearings: waterproof - sealed, resistant to water and humidity.
Motor construction according to EN 60335-2-41 standards
Standard voltage:- Three-phase 230/400V 50Hz

TECHNICAL DATA:
- pH range = 6.5 - 8.4
- Liquid temperature range = up to 60 °C
- Maximum ambient temperature = 50 °C
- Maximum operating pressure = 2.5 Bar
- Nominal operating pressure = 0.8 - 1.2 Bar (ideal 1 Bar)
- Installation = Fixed or portable in horizontal position
- Reference standard = IEC - 60364

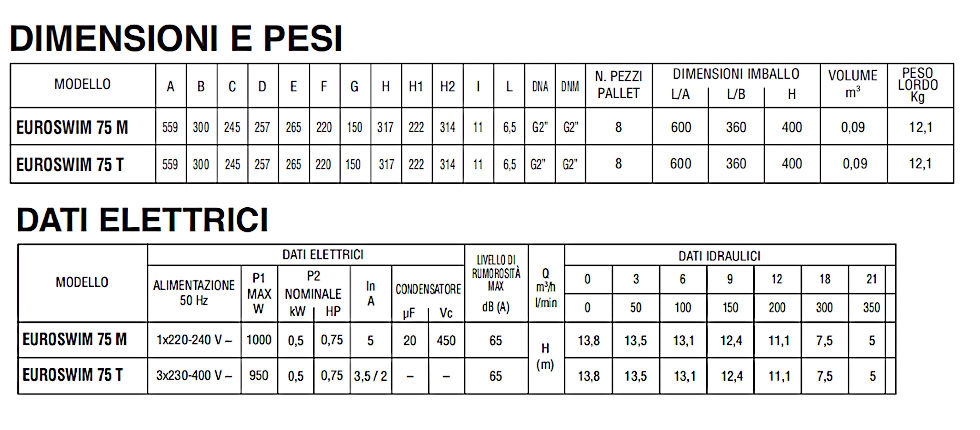

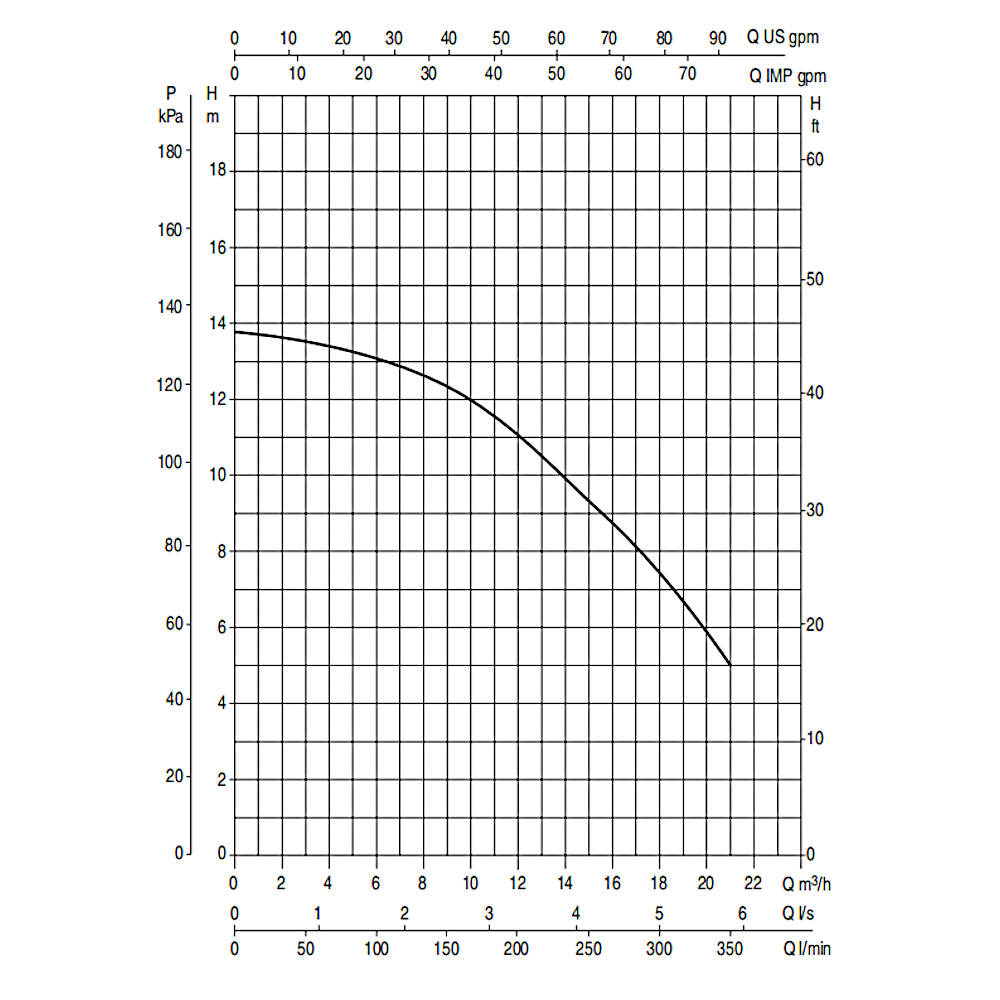

DAB EUROSWIM 75 PUMP TECHNICAL CHARACTERISTICS
