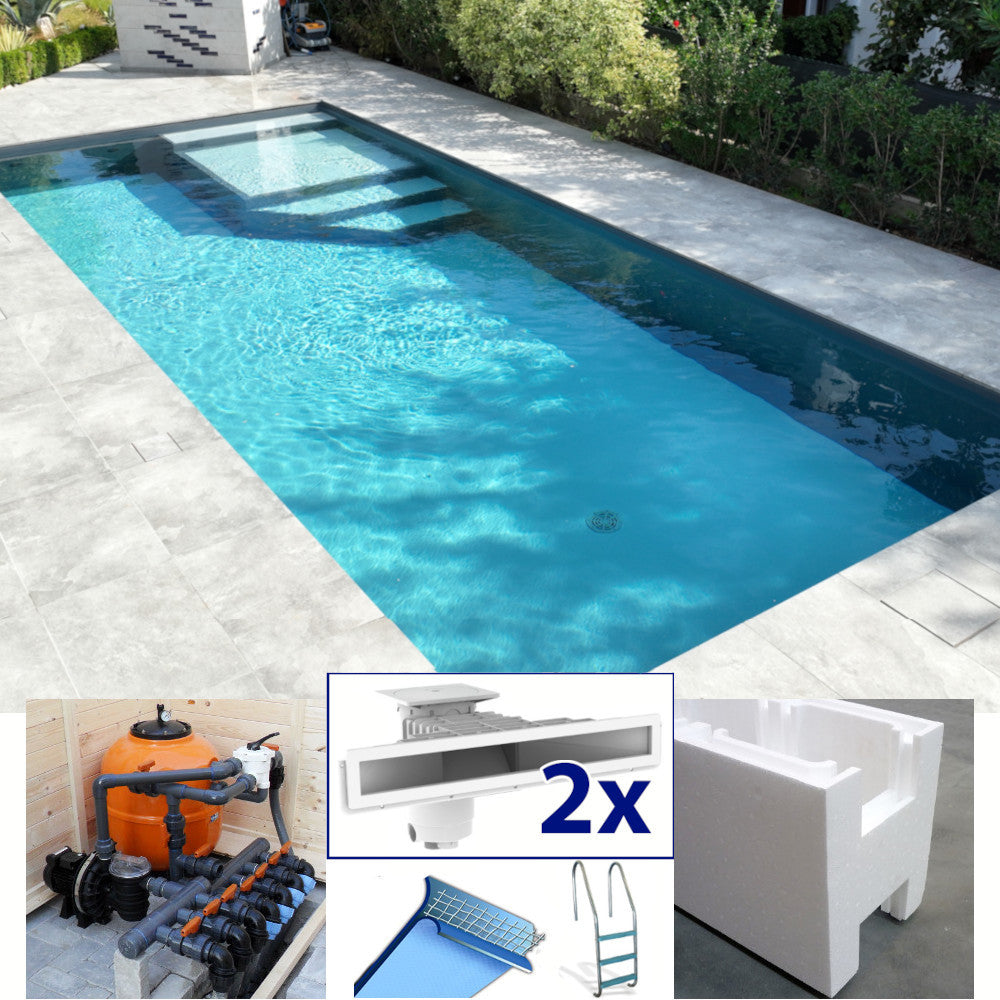

Easy Sand Line kit, DIY pool kit 3 x 12 x h 1.50, skimmer overflow sand filter

EASYBLOK SYSTEM

Thanks to this innovative system, building a reinforced concrete pool is easy, fast and economical.

Rectangular pools can be built, easily accessorized by inserting jets, skimmers and lights directly into the EPS walls (material with "closed-cell" technology, unlike common polystyrene, it guarantees a high degree of resistance to water and humidity infiltration that leads to the degradation of the material's structural characteristics).

The available formats meet every construction need, while ensuring unparalleled ease of installation: it is sufficient to couple the interlocking modules, taking care to reinforce each line of formwork. Then proceed to pour concrete inside the formwork to create a true reinforced concrete wall.

Straight modules: length 1.25 m, height 30 cm.
Specifications: Density PS30, estimated cement quantity: 0.12 m³ x m².

The ease of assembling the structure is surprising.

Excavation, concrete and iron are excluded.

The innovative OVERFLOW SKIMMER system

Overflow skimmer with a very wide suction mouth (approx. 80 cm wide, 7 cm high) for reinforced concrete pools with PVC lining.

Allowed flow rate: 6 to 10 mc/h.
Material: Made of UV-resistant ABS with a wide mouth.
Positioning: Near the edge (up to 8 cm from the pool edge).

Equipment (Outlets and Connections):
- n.1 threaded outlet Ø 2’M
- 1 glue outlet Ø 50
- Overflow Ø 40
- Level regulator connection Ø 40

Recommendations: it is recommended to install an automatic level regulator.

POOL CHARACTERISTICS:

Shape Rectangular
Type Skimmer
Length 12m
Width 3m
Structure height 1.5m
Water height 1.40 m in compliance with legal standards
Surface 36m²
Perimeter 30m
Volume 54m³

N.B.: The filtration system is supplied unassembled

On base: € 749.00
In technical room: € 1,499.00
In technical room with by-pass: € 1,999.00

Accessories and Integrations

Level control: complete with pipes and additional accessories (€ 499.00 extra).
Bluetooth electrical panel: allows you to start and stop the filtration system and lighting via a smartphone app, without accessing the physical panel.

Lighting Customization
It is possible to replace the PAR56 lamps included in the kit with tubular lamps. Design lighting kits can be integrated with these to increase the light points:

- Small: +2 tubular lamps
- Medium: +4 tubular lamps
- Large: +6 tubular lamps

Please note: Add the cost of the service before adding the product to the cart.

DETAILS ON THE LINING (PVC SHEET)

Standard shades: white, sand, basalt grey and medium grey (to be specified at the time of order).
Other shades: available on request by contacting us directly via e-mail or phone.

The PVC sheet supplied in our kits will make your pool elegant and perfectly finished. This lining has a special lacquer that makes it super smooth, resistant to chlorine, UV rays and atmospheric agents, thus preserving the beauty and vibrancy of the color. Furthermore, it is durable over time thanks to the special polyester reinforcement placed in the center of its various layers. Cleaning operations are also reduced because the liner is anti-limescale and resistant to attack by sun creams and any microorganisms (fungi/bacteria/spores).

Installation Notes: it is necessary to heat-seal the sheet on site using a leister or a heat gun.

Customization: Ladder or Beach Area
It is possible to customize the pool by choosing between two different access solutions:

- The LADDER is a pre-assembled block, easy and quick to install.
Supplied with plasticized corner pieces for a perfect sheet installation. Includes a roll of non-slip safety reinforced PVC sheet.
- The BEACH AREA must be assembled on site. Supplied with plasticized corner pieces for a perfect sheet installation. Includes a roll of non-slip safety reinforced PVC sheet. Suitable for creating a beach area of maximum 10sqm.
