Easy Sand Line kit, DIY pool kit 5 x 10 x h 1.50, skimmer overflow sand filter

EASYBLOK SYSTEM

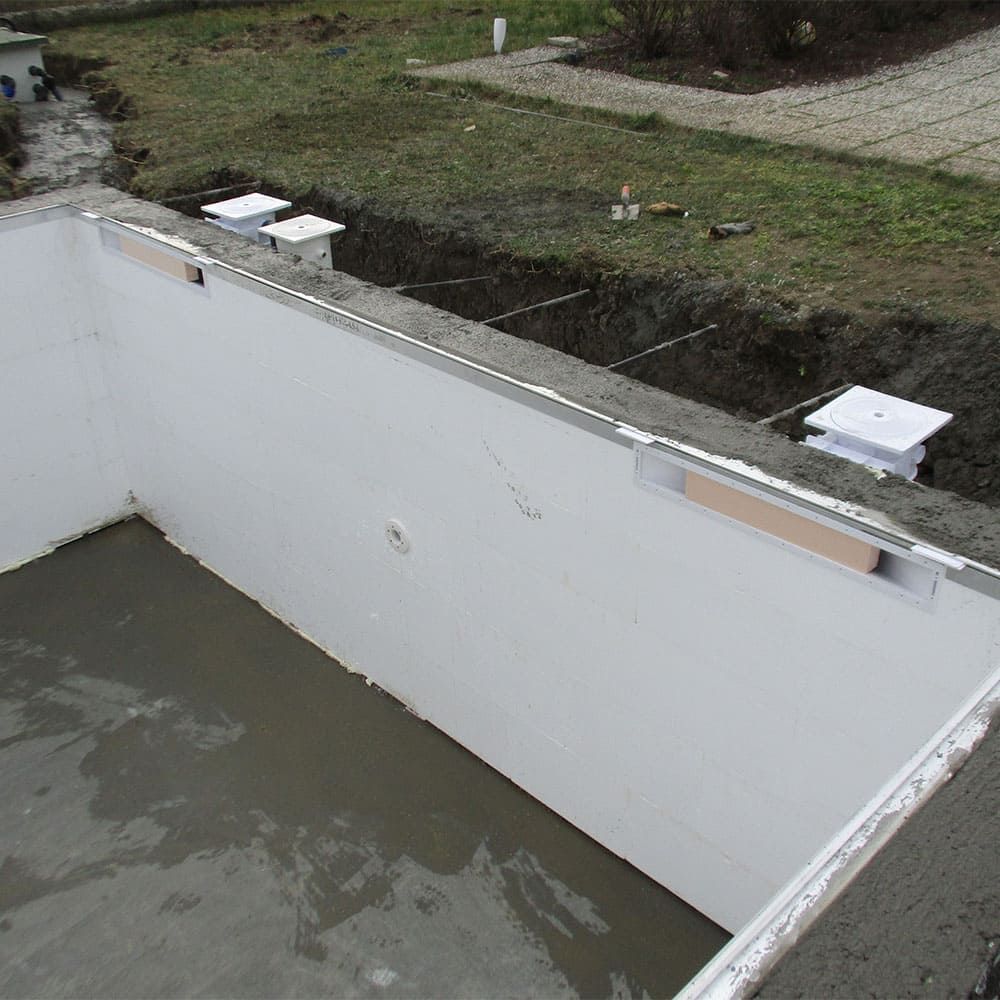

Thanks to this innovative system, building a reinforced concrete pool is easy, fast, and economical.

Rectangular pools can be created, easily accessorized by inserting inlets, skimmers, and lights directly into the walls of EPS (a material with "closed-cell" technology, unlike common polystyrene, it guarantees a high degree of resistance to water infiltration and humidity that lead to the degradation of the material's structural characteristics).

The available formats meet every construction need, while guaranteeing unparalleled ease of installation: it is enough to couple the interlocking modules, making sure to reinforce each line of formwork. Afterwards, the concrete is poured into the formwork to create a true reinforced concrete wall.

Straight modules: 1.25 m long, 30 cm high.
Specifications: PS30 density, estimated cement quantity: 0.12 m³ x m².

The simplicity of assembling the structure is surprising.

Excavation, concrete and iron are excluded.

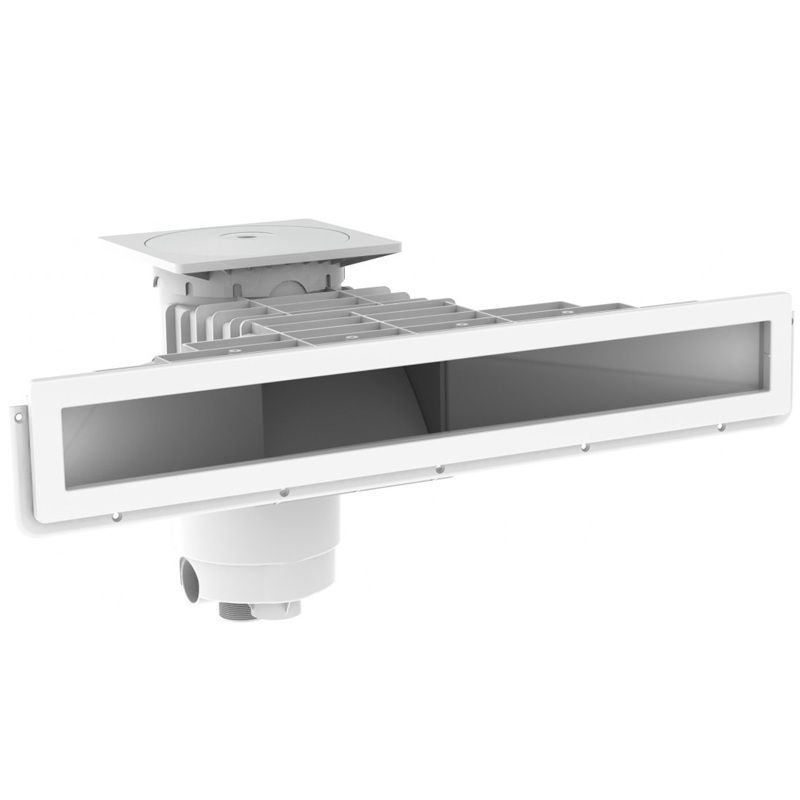

The innovative OVERFLOW SKIMMER system

Overflow skimmer with a very wide suction mouth (approx. 80 cm wide, 7 cm high) for reinforced concrete pools with PVC lining.

Admitted flow rate: from 6 to 10 mc/h.
Material: Made of ABS, UV-resistant with a wide mouth.
Placement: Near the edge (up to 8 cm from the pool edge).

Equipment (Outlets and Connections):
- No. 1 threaded outlet Ø 2’M
- 1 gluing outlet Ø 50
- Overflow Ø 40
- Level regulator connection Ø 40

Recommendations: The installation of an automatic level regulator is recommended.

POOL CHARACTERISTICS:

Shape Rectangular
Type Skimmer
Length 10m
Width 5m
Structure height 1.5m
Water height 1.40 m according to law
Surface area 50m²
Perimeter 30m
Volume 75m³

N.B.: The filtration system is supplied unassembled

On base: € 749.00
In technical room: € 1,499.00
In technical room with by-pass: € 1,999.00

Accessories and Integrations

Level control: complete with pipes and completion accessories (€ 499.00 additional).
Bluetooth electrical panel: allows you to start and stop the filtration system and lighting via a smartphone app, without accessing the physical panel.

Lighting Customization
It is possible to replace the PAR56 lamps included in the kit with tubular lamps. Design lighting kits can be integrated with these to increase the light points:

- Small: +2 tubular lamps
- Medium: +4 tubular lamps
- Large: +6 tubular lamps

Please note: Add the service cost before adding the product to the cart.

DETAILS ON THE LINING (PVC SHEET)

Standard shades: white, sand, basalt grey, and medium grey (to be specified when ordering).
Other shades: available upon request by contacting us directly via e-mail or phone.

The PVC sheet supplied in our kits will make your pool elegant and perfectly finished. This lining has a special lacquer that makes it super smooth, resistant to chlorine, UV rays and atmospheric agents, thus preserving the beauty and vibrancy of the color. Furthermore, it is durable over time thanks to the special polyester reinforcement placed in the center of its various layers. Cleaning operations are also reduced because the liner is anti-limescale and resistant to attack by sunscreens and any microorganisms (fungi/bacteria/spores).

Installation Notes: the sheet must be heat-sealed on site using a leister or a hot air gun.

Customization: Stairs or Beach
It is possible to customize the pool by choosing between two different access solutions:

- The STAIRS are a pre-assembled block, easy and quick to install.
Supplied with plasticized corners for a professional sheet installation. Includes a roll of non-slip reinforced PVC sheet for safety.
- The BEACH , on the other hand, needs to be assembled on site. Supplied with plasticized corners for a professional sheet installation. Includes a roll of non-slip reinforced PVC sheet for safety. Suitable for creating a beach with a maximum size of 10sqm.
