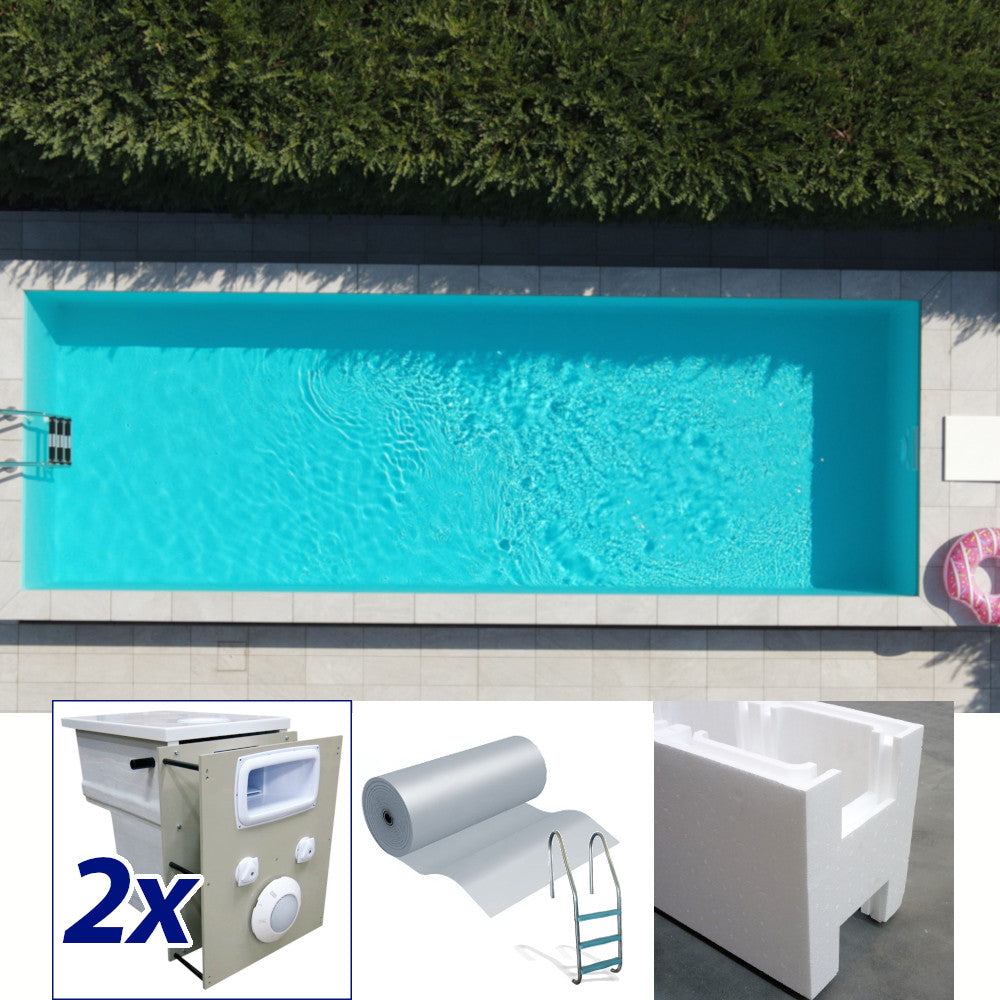

Easy kit design, DIY pool kit 3 x 12 x h 1.50, skimmer

DIY POOL KIT CONSISTING OF EASYBLOK FORMWORK STRUCTURE AND GS14 FILTER WALL.
Completely Made in Italy.

To build your reinforced concrete pool simply, economically and quickly, there is nothing better than this innovative kit!
Thanks to the easy installation of the formwork and the filter wall, you will build the pool of your dreams independently and without sacrificing aesthetics. The formwork is made of EPS, a material with "closed-cell" technology which, unlike common polystyrene, guarantees a high degree of resistance to water and humidity infiltration that leads to the degradation of the material's structural characteristics.

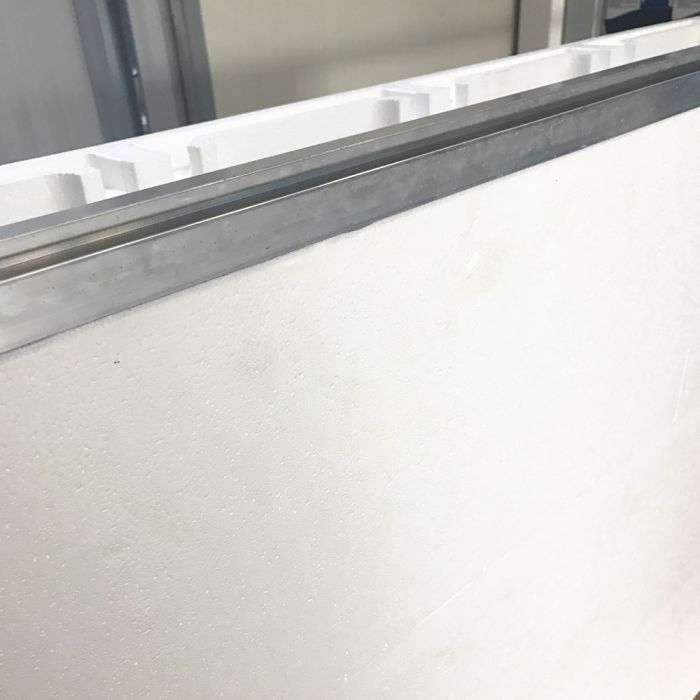

To create the structure, it is sufficient to couple the interlocking modules, taking care to reinforce each line of formwork. Then, the concrete is poured into the formwork to form a real reinforced concrete wall.

With this kit, it is possible to build an in-ground or semi-in-ground pool.

The filter wall allows you to build a pool in a few simple steps.
It is sufficient to build the tank, without any special provisions, other than the necessary space for installing the filter wall (or filter walls in the case of particularly large pools). The wall, in addition to filtering the water thanks to its professional cartridges with a large filtering surface, will contain within it the lighting, the electrical panel, the filtration pump, and possibly also the bypass for the predisposition of electrolysis systems or heat pumps.

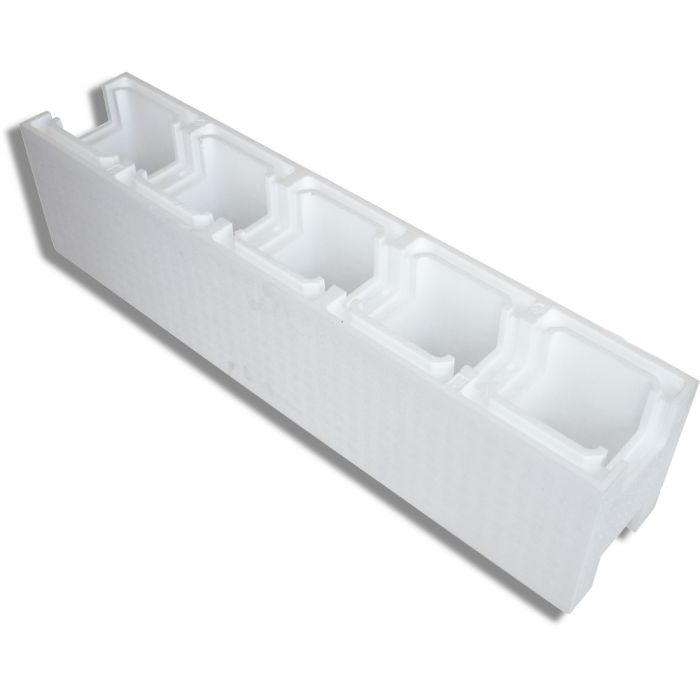

Straight modules with a length of 1.25 m, 30 cm high. PS30 density, estimated cement quantity: 0.12 m³ x m².

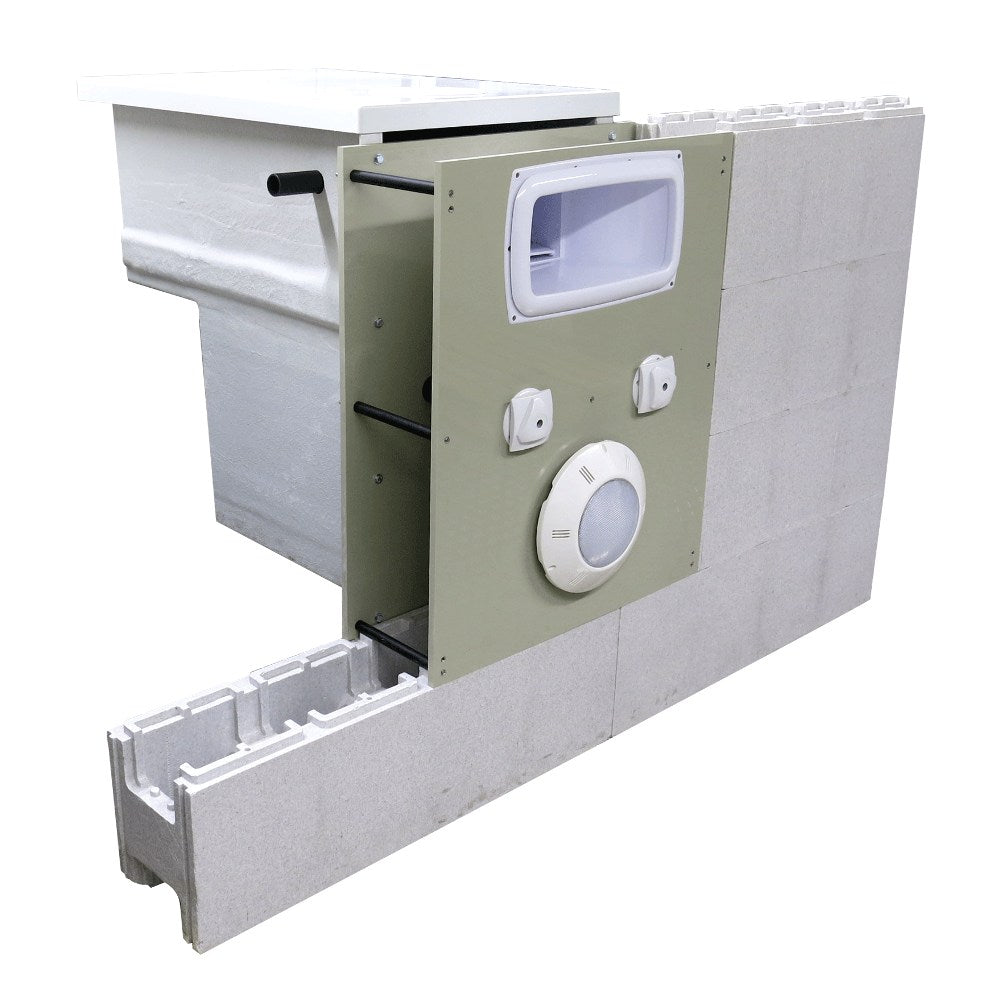

The installation and management of this pool kit is made even simpler by the innovative GS14 filter wall. The filter wall is installed directly on the pool wall and includes everything necessary for water recirculation and lighting, thus facilitating the construction of the pool. Next to the pool, it will be necessary to prepare a space to place the technical room, which will be connected directly to a wall of the tank.

POOL FEATURES:

• Shape rectangular
• Type Skimmer
• Water mirror dimensions 3 x 12 m
• Pool structure dimensions 3.50 x 12.50 m
• Structure height 1.5m
• Water height 1.40 m according to law
• Surface area 36m²
• Internal perimeter 30m
• External perimeter 32m
• Volume 54 m³



DETAILS ON THE LINER (PVC SHEET)
The liner is available in 4 shades: white, sand, basalt grey, and medium grey (please specify when ordering). The liner has a special lacquer that makes it super smooth, resistant to chlorine, UV rays, and atmospheric agents. Thanks to its polyester reinforcement, it is durable, anti-limescale, and resistant to sun creams and microorganisms. Note: It is necessary to heat-seal the liner on-site with a Leister or heat gun.

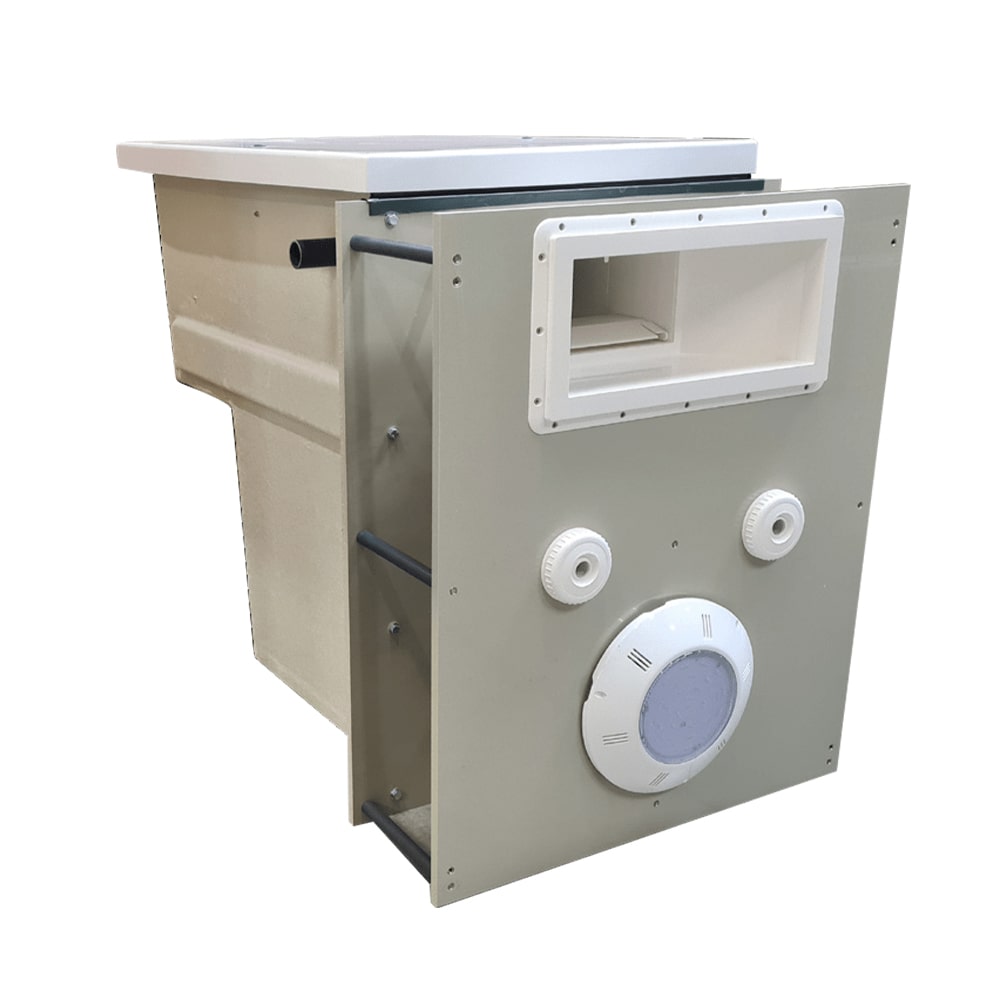

FILTER WALL FEATURES:

• Filtration pump 14m³/h – 0.5Kw
• Filter cartridge: filtering surface 4.5 m² - fineness 25µ
• RGB Projector 270 Led – 15.9W + remote control
• Casing: fiberglass
• INTEGRATABLE OPTIONALS:
  - BY Pass
  - Salt chlorinator
  - Automatic PH regulator

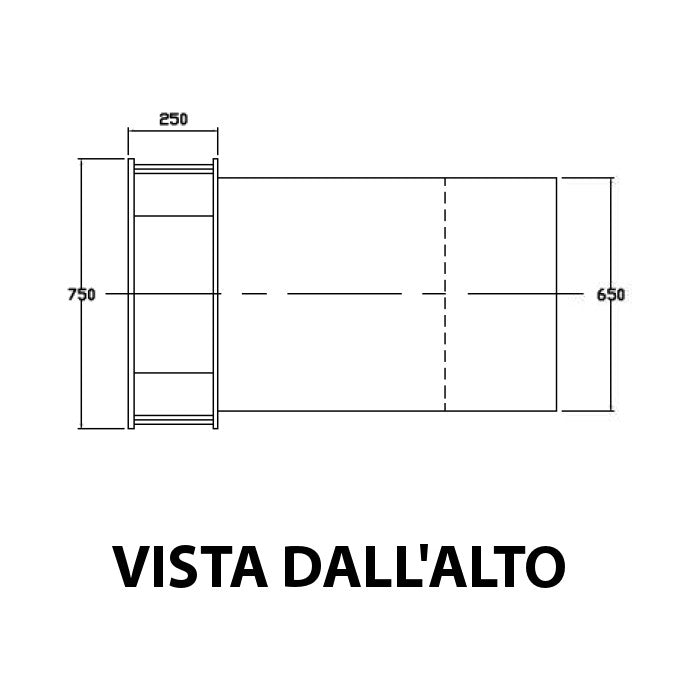

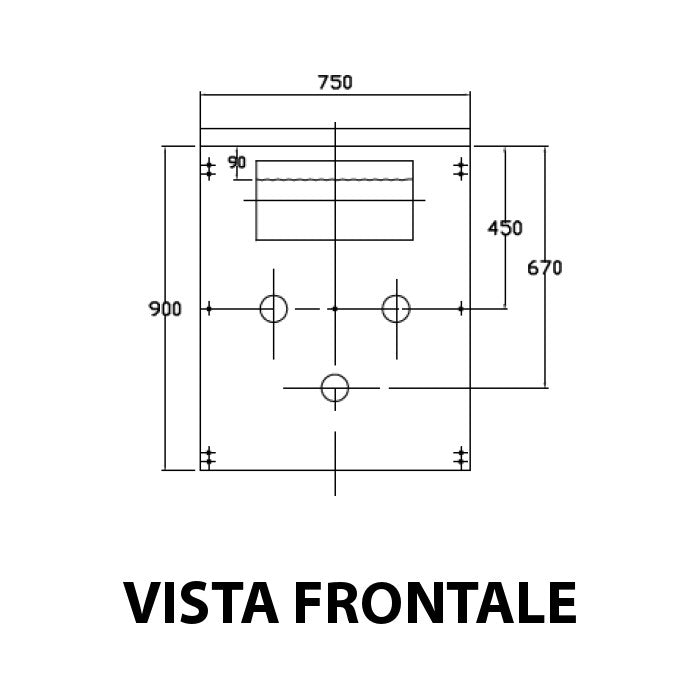

IMPORTANT: when creating the concrete slab for the pool base, it is necessary to also consider the footprint of the filter wall, which will always rest on the slab. Therefore, where the filter wall is to be placed, it is necessary to consider a footprint of 110 cm (depth) x 90 cm (width).

CONSTRUCTION PHASES:

• Excavation based on the necessary dimensions (also consider the support space for the filter wall - or filter walls - on the side where it will be placed: 110 cm depth by 90 cm width for each filter wall)
• Creation of the concrete slab - average 20 -25 cm with electro-welded mesh

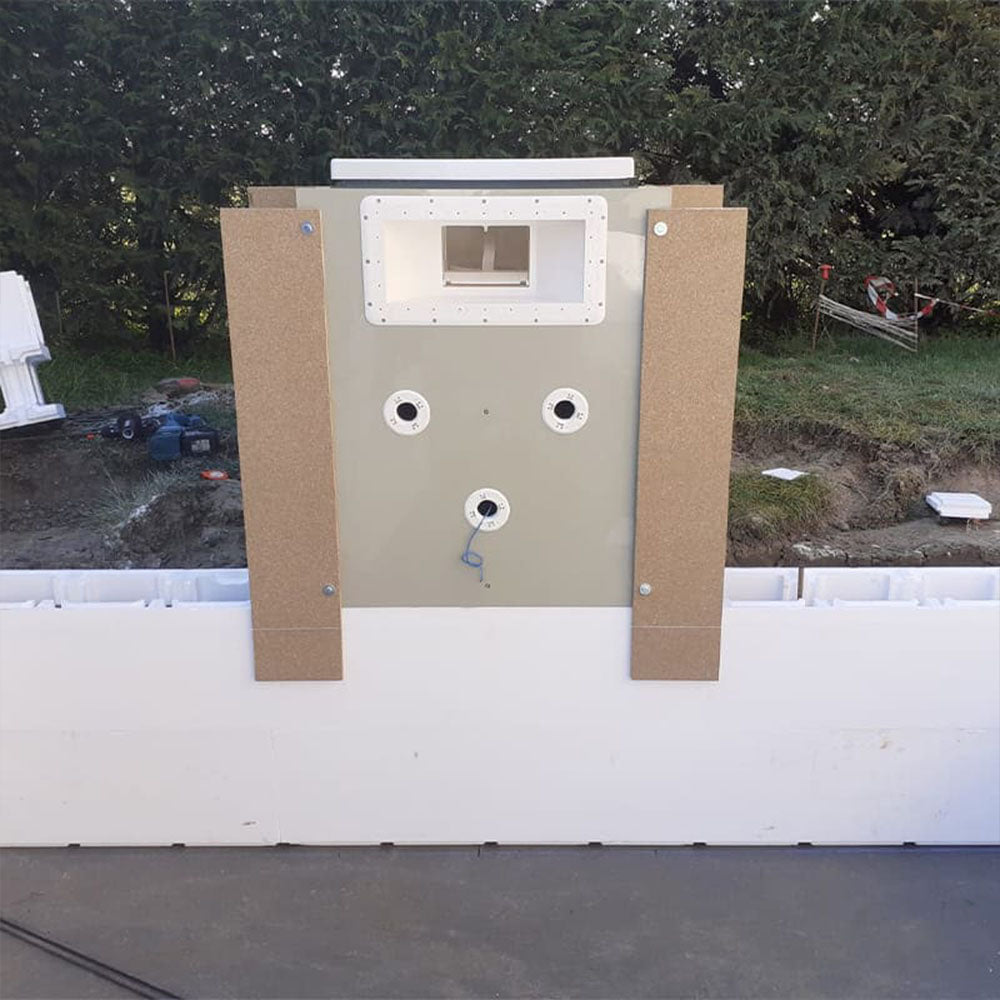

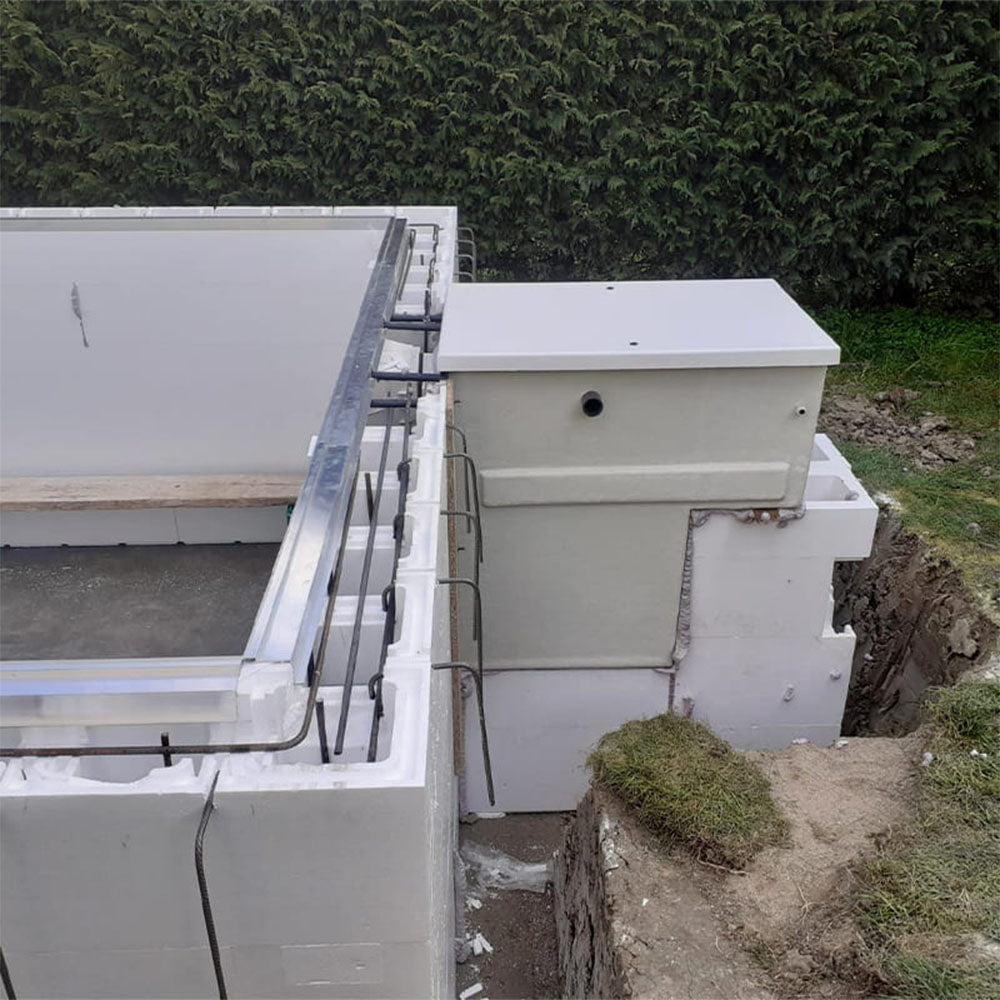

• Easyblok installation with reinforcement and GS14 filter wall
• Assembly of the formwork in front of and behind the filter wall (to ensure the concrete holds during pouring)
• Structure pouring
• Removal of the formwork
• Laying of the polyurethane mat
• Laying of the reinforced PVC liner
• Assembly of gaskets on skimmers, nozzles, and projector



N.B. TRANSPORT COST IS NOT INCLUDED IN THE PRICE.



WARRANTIES

• Electronic components: 2 years full warranty.
• Reinforced liner: 10 years warranty.
