Easy kit design, DIY swimming pool kit 5 x 5 x h 1.50, skimmer

DIY POOL KIT CONSISTING OF EASYBLOK FORMWORK STRUCTURE AND GS14 FILTER WALL.
Completely Made in Italy.

To build your reinforced concrete pool simply, economically, and quickly, there is nothing better than this innovative kit!
Thanks to the easy installation of the formwork and filter wall, you can build the pool of your dreams independently without sacrificing aesthetics. The formwork is made of EPS, a material with "closed-cell" technology which, unlike common polystyrene, guarantees a high degree of resistance to water infiltration and humidity that lead to the degradation of the material's structural characteristics.
To create the structure, simply connect the interlocking modules, making sure to reinforce each line of formwork. Then, pour concrete inside the formwork to form a true reinforced concrete wall.

With this kit, it is possible to build an inground or semi-inground pool.

The filter wall allows you to build a pool in a few simple steps.
You just need to build the pool shell, without any special provisions other than the space required for the installation of the filter wall (or filter walls in the case of particularly large pools). The wall, in addition to filtering the water thanks to its professional cartridges with a large filtering surface, will contain lighting, the electrical panel, the filtration pump, and potentially also a bypass for the provision of electrolysis systems or a heat pump.

Straight modules with a length of 1.25 m, 30 cm high. PS30 density, estimated cement quantity: 0.12 m³ per m².

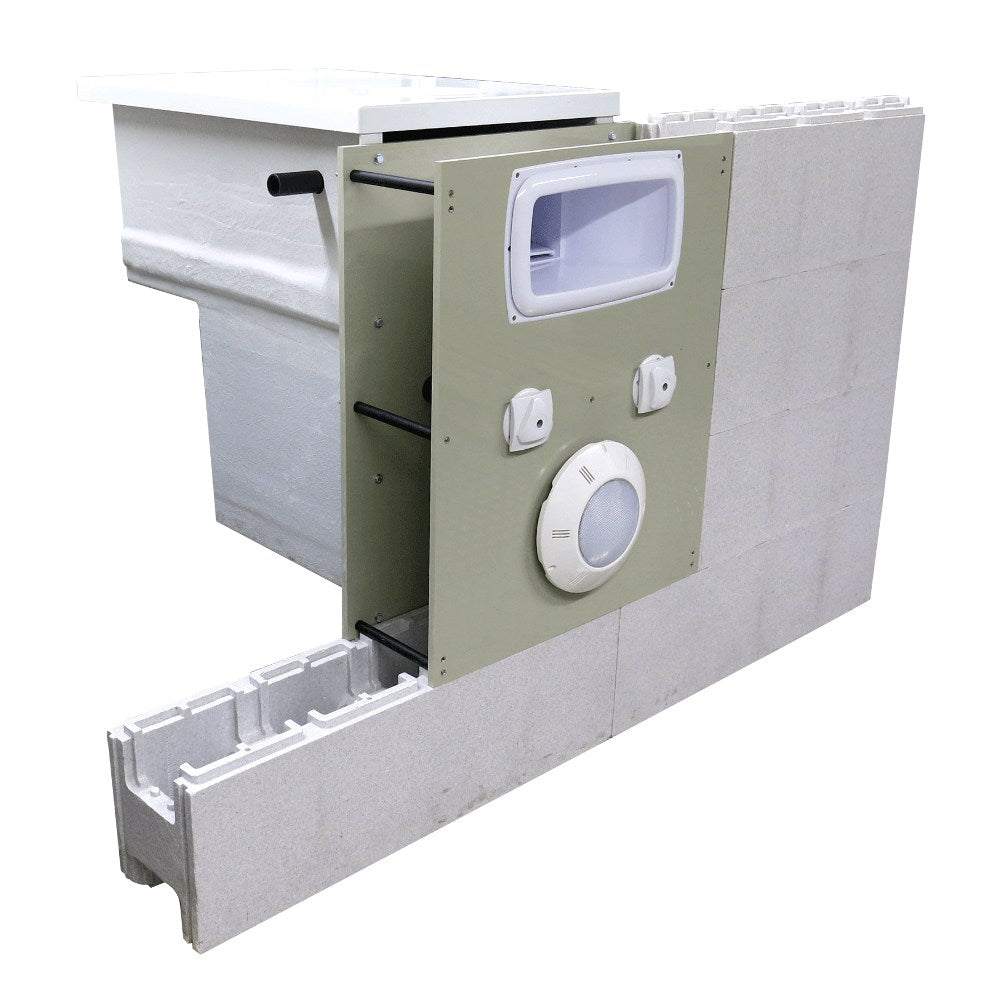

The installation and management of this pool kit are made even simpler by the innovative GS14 filter wall. The filter wall is installed directly on the pool wall and includes everything necessary for water circulation and lighting, thus facilitating the construction of the pool. Next to the pool, it will be necessary to prepare a space to place the technical room, which will be connected directly to a wall of the pool.

POOL CHARACTERISTICS:

• Shape rectangular
• Type Skimmer
• Water surface dimensions 5 x 5 m
• Pool structure dimensions 5.50 x 5.50 m
• Structure height 1.5m
• Water height 1.40 m according to law
• Surface area 25m²
• Inner perimeter 20m
• Outer perimeter 22m
• Volume 37.5 m³



LINER DETAILS (PVC LINER)
The liner is available in 4 shades: white, sand, basalt gray, and medium gray (please specify when ordering). The liner has a special lacquer coating that makes it super smooth, resistant to chlorine, UV rays, and atmospheric agents. Thanks to its polyester reinforcement, it is durable, anti-limescale, and resistant to sun creams and microorganisms. Note: The liner must be heat-sealed on-site with a leister or hot air gun.

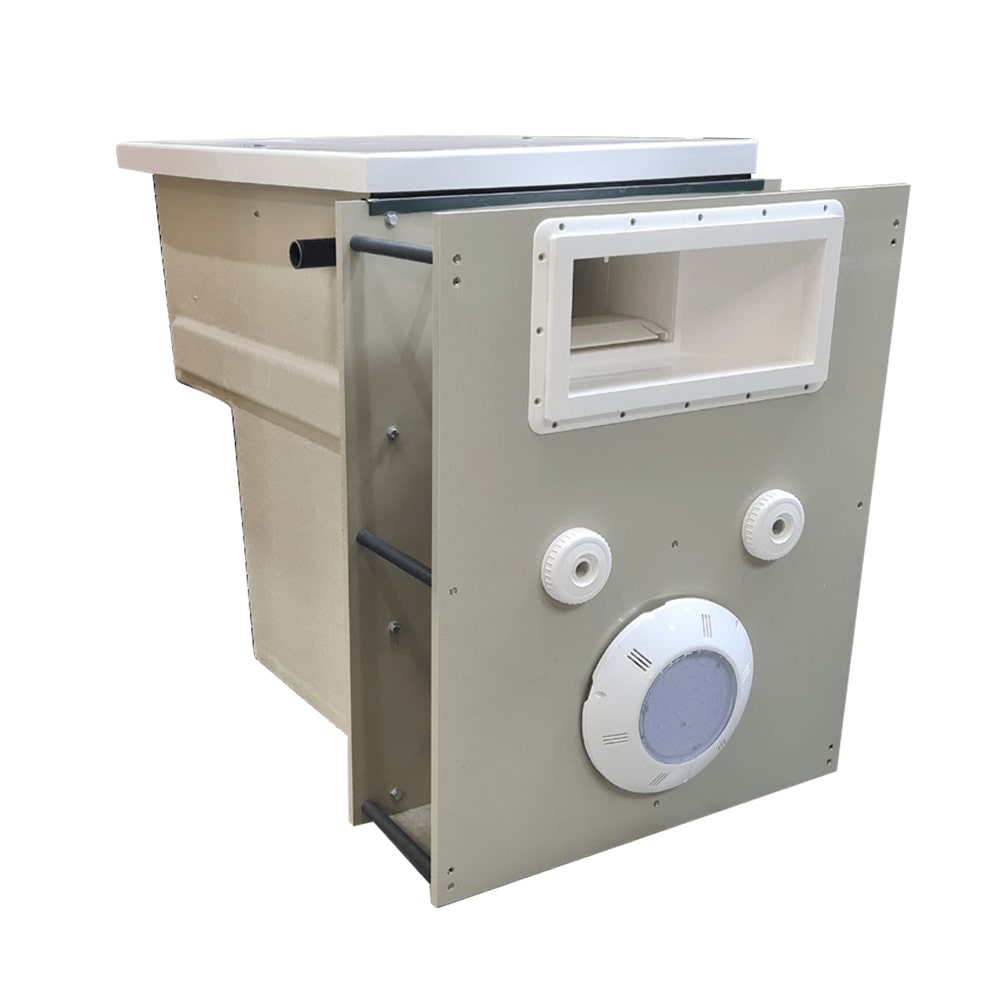

FILTER WALL CHARACTERISTICS:

• Filtration pump 14m3/h – 0.5Kw
• Filter cartridge: filtering surface 4.5 m2 - fineness 25µ
• RGB Projector 270 Led – 15.9W + remote control
• Shell: fiberglass
• INTEGRABLE OPTIONAL FEATURES:
  - BY Pass
  - Salt electrolyzer
  - Automatic PH regulator

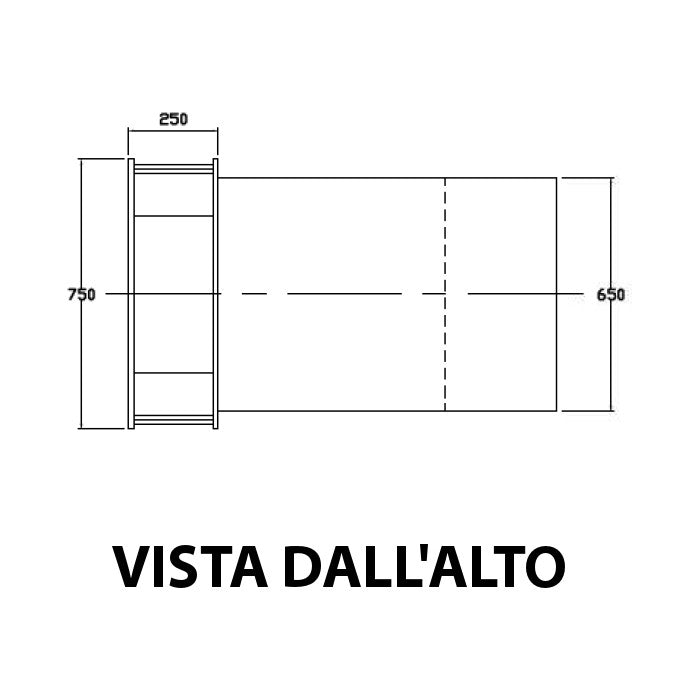

IMPORTANT: When creating the concrete slab for the pool base, it is also necessary to consider the footprint of the filter wall, which will always rest on the slab. Therefore, where the filter wall is to be positioned, it is necessary to consider a footprint of 110 cm (depth) x 90 cm (width).

CONSTRUCTION PHASES:

• Excavation based on necessary dimensions (also consider the support space for the filter wall - or filter walls - on the side where it will be positioned: 110 cm depth by 90 cm width for each filter wall)
• Creation of the concrete slab - typically 20-25 cm with welded mesh

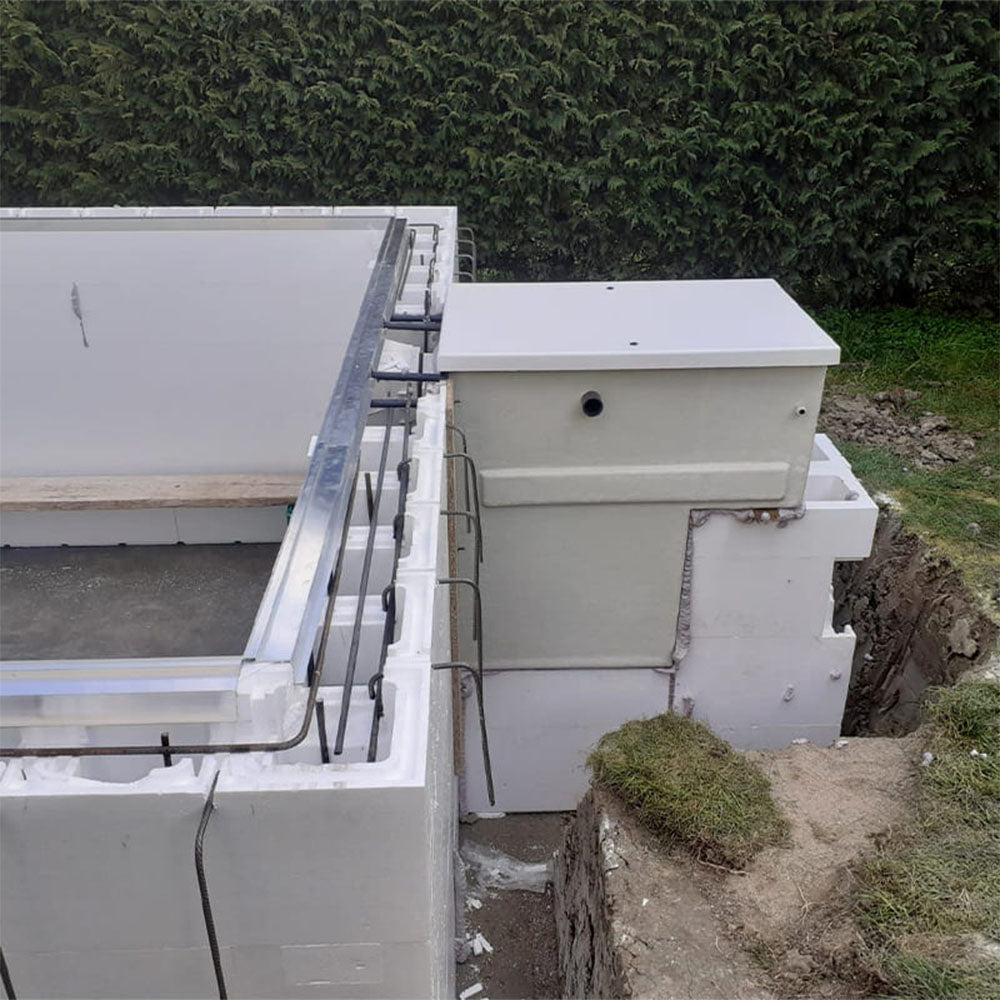

• Installation of Easyblok with reinforcement and GS14 filter wall
• Assembly of the formwork in front of and behind the filter wall (to ensure cement containment during pouring)
• Pouring of the structure
• Removal of the formwork
• Laying of the polyurethane mat
• Laying of the reinforced PVC liner
• Assembly of seals on skimmer, nozzles, and projector



N.B. TRANSPORT COST IS NOT INCLUDED IN THE PRICE.



WARRANTIES

• Electronic components: 2 years full warranty.
• Reinforced liner: 10 years warranty.
