Easy kit design, DIY swimming pool kit 5 x 7 x h 1.50, skimmer

DIY POOL KIT CONSISTING OF EASYBLOK FORMWORK STRUCTURE AND GS14 FILTER WALL.
Completely Made in Italy.

To build your reinforced concrete pool simply, economically, and quickly, there's nothing better than this innovative kit!
Thanks to the easy installation of the formwork and the filter wall, you will build the pool of your dreams independently and without sacrificing aesthetics. The formwork is made of EPS, a material with "closed cell" technology which, unlike common polystyrene, guarantees a high degree of resistance to water infiltration and humidity that lead to the degradation of the material's structural characteristics.
To create the structure, simply connect the interlocking modules, making sure to reinforce each line of formwork. Then, pour concrete into the formwork to create a real reinforced concrete wall.

With this kit, you can build an inground or semi-inground pool.

The filter wall allows you to build a pool in a few simple steps.
It is sufficient to build the pool shell, without any special preparation other than the space required for the installation of the filter wall (or filter walls in the case of particularly large pools). The wall, in addition to filtering the water thanks to its professional cartridges with a large filtering surface, will contain the lighting, electrical panel, filtration pump, and possibly also the bypass for electrolysis systems or heat pumps.

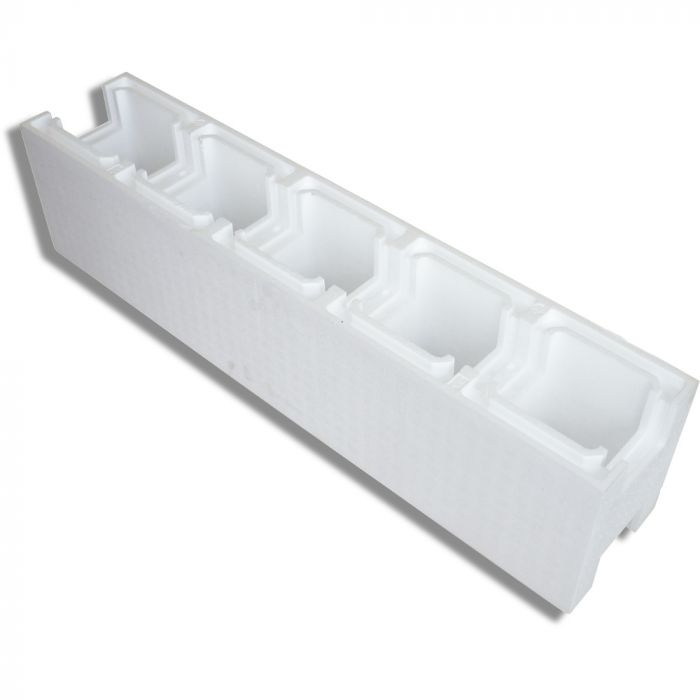

Straight modules with a length of 1.25 m, 30 cm high. PS30 density, estimated cement quantity: 0.12 m³ x m².

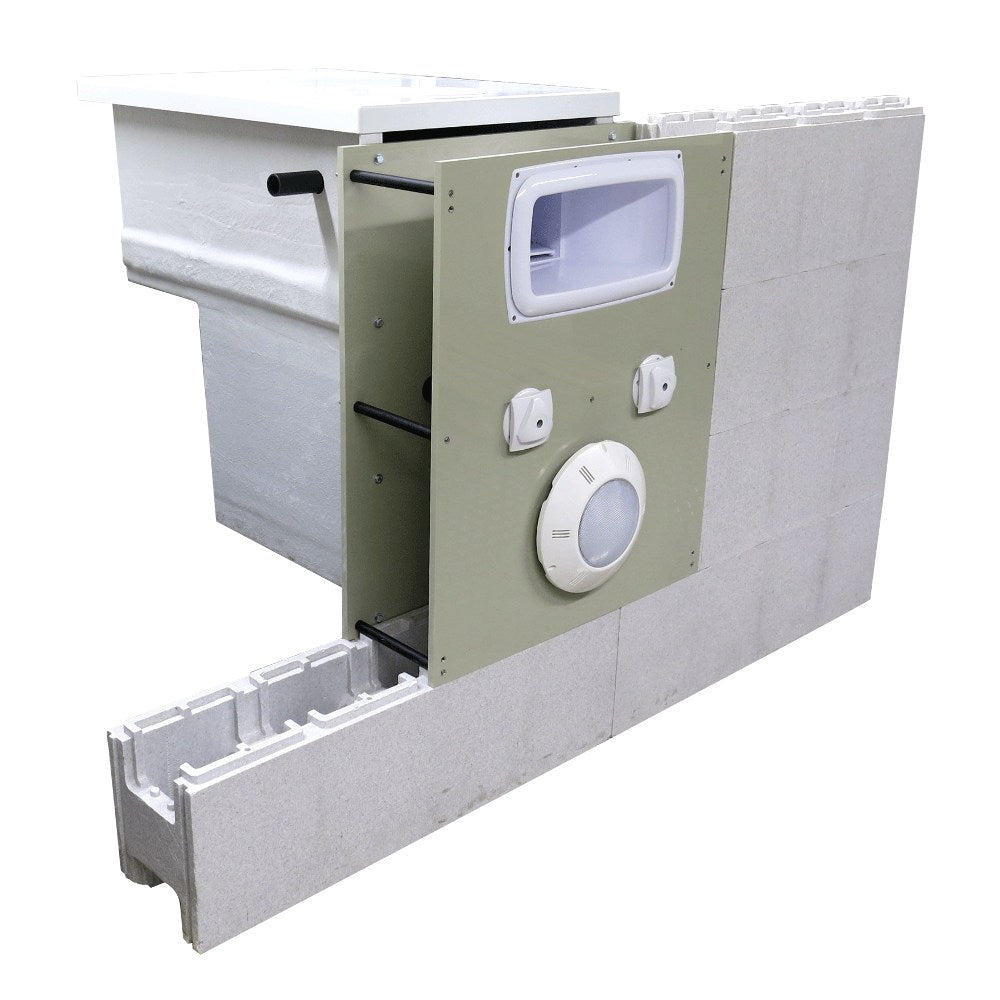

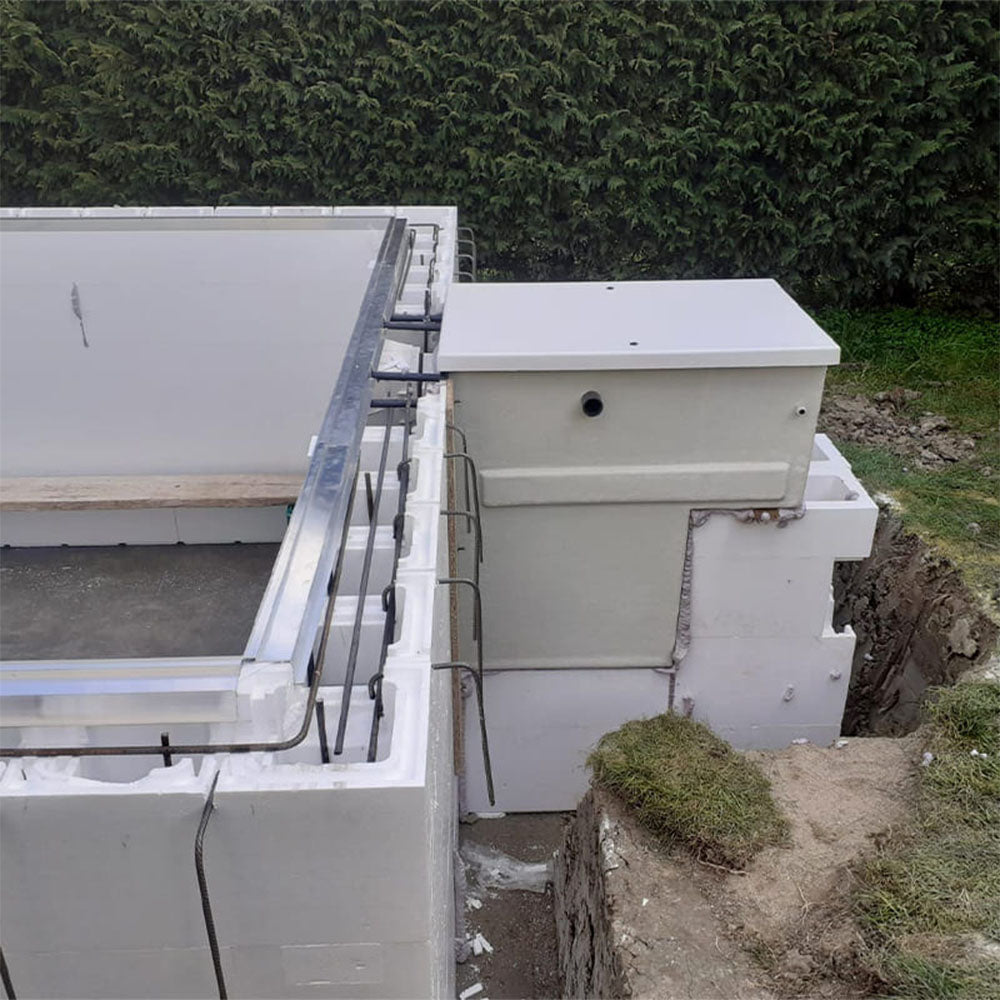

The installation and management of this pool kit are made even simpler by the innovative GS14 filter wall. The filter wall is installed directly on the pool wall and includes everything necessary for water recirculation and lighting, thus facilitating the construction of the pool. Next to the pool, it will be necessary to prepare a space for the technical room, which will be directly connected to one wall of the pool.

POOL FEATURES:

• Shape rectangular
• Type Skimmer
• Water surface dimensions 5 x 7 m
• Pool structure dimensions 5.50 x 7.50 m
• Structure height 1.5m
• Water height 1.40 m in compliance with regulations
• Surface area 35m²
• Internal perimeter 24m
• External perimeter 26m
• Volume 52.5 mc



LINER DETAILS (PVC SHEET)
The liner is available in 4 shades: white, sand, basalt grey, and medium grey (please specify when ordering). The liner has a special lacquer coating that makes it super smooth, resistant to chlorine, UV rays, and atmospheric agents. Thanks to its polyester reinforcement, it is durable, anti-limescale, and resistant to sunscreens and microorganisms. Note: The liner must be heat-welded on site with a leister or hot air gun.

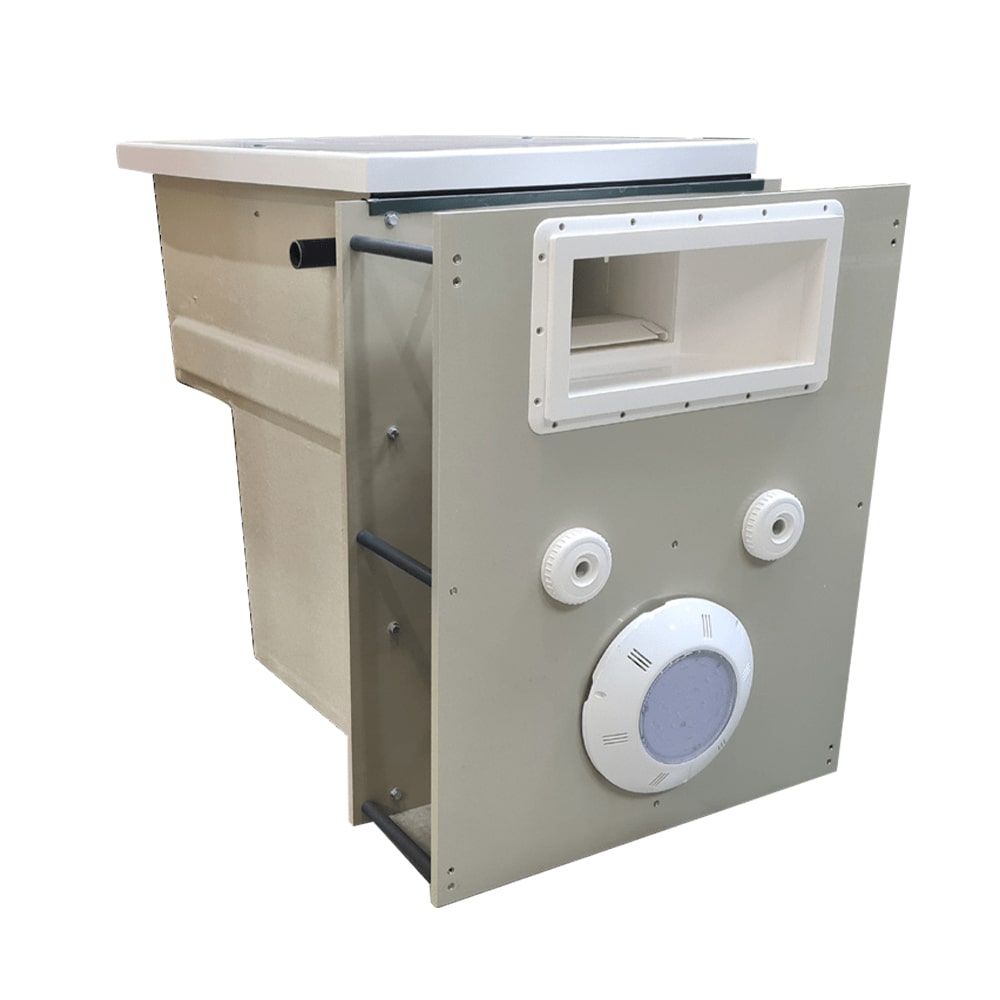

FILTER WALL FEATURES:

• Filtration pump 14m3/h – 0.5Kw
• Filter cartridge: filtering surface 4.5 m2 - fineness 25µ
• RGB Projector 270 Led – 15.9W + remote control
• Shell: fiberglass
• INTEGRABLE OPTIONS:
  - BY Pass
  - Salt chlorinator
  - Automatic PH regulator

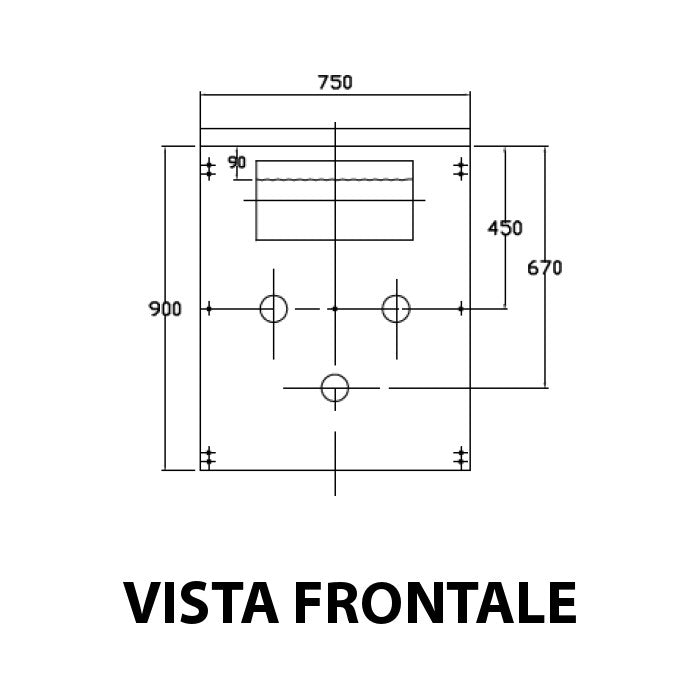

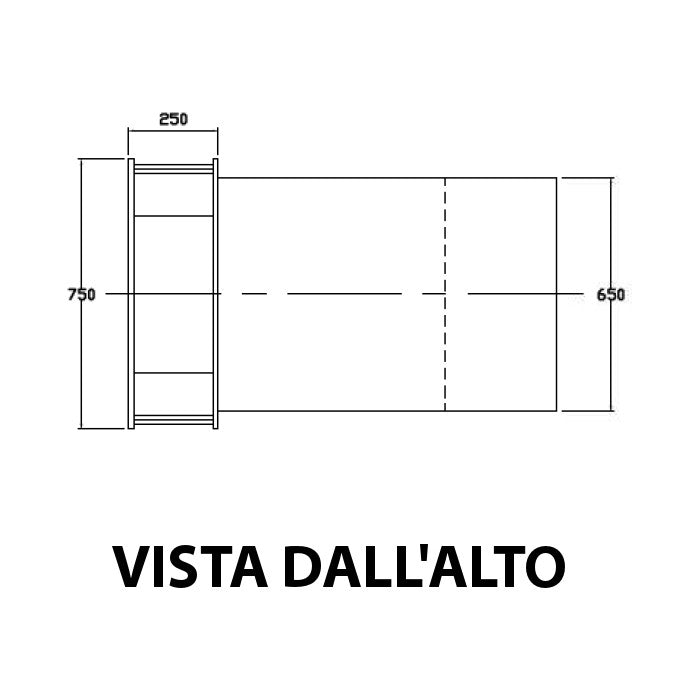

IMPORTANT: when creating the concrete slab for the pool base, it is necessary to also consider the footprint of the filter wall, which will also rest on the slab. Therefore, where you want to position the filter wall, it is necessary to consider a footprint of 110 cm (depth) x 90 cm (width).

CONSTRUCTION PHASES:

• Excavation based on necessary dimensions (also consider the support space for the filter wall - or filter walls - on the side where it will be positioned: 110 cm depth by 90 cm width for each filter wall)
• Creation of the concrete slab - approximately 20-25 cm with electro-welded mesh

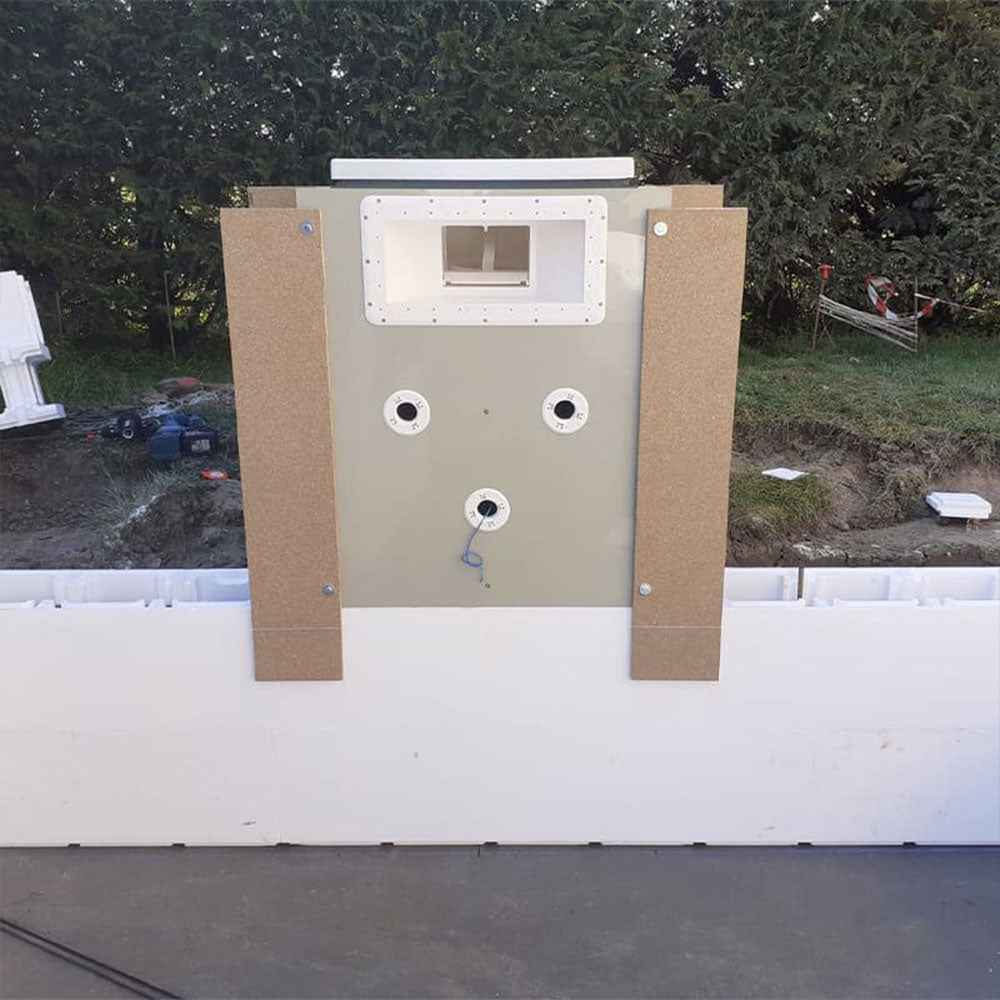

• Installation of Easyblok with reinforcement and GS14 filter wall
• Assembly of formwork in front of and behind the filter wall (to ensure concrete retention during pouring)
• Structure casting
• Removal of formwork
• Laying of polyurethane mat
• Laying of reinforced PVC sheet
• Assembly of gaskets on skimmer, jets, and projector



N.B. TRANSPORT COST IS NOT INCLUDED IN THE PRICE.



WARRANTIES

• Electronic components: 2 years full warranty.
• Reinforced liner: 10 years warranty.
