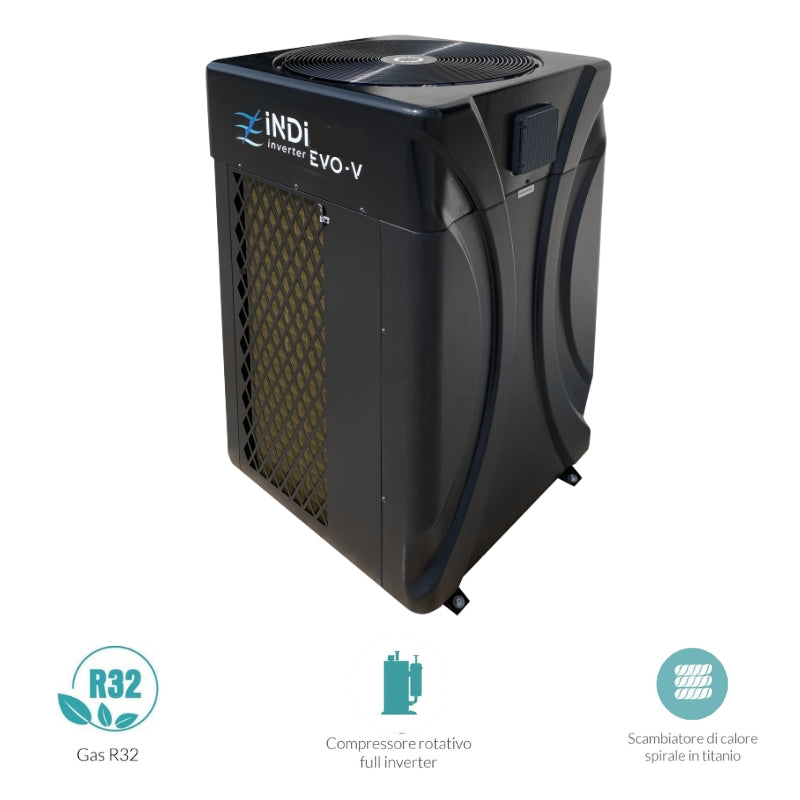

Indi Evo V 80T heat pump for swimming pools up to 140 m3 of water

Inverter heat pump with touch display controller and possibility of remote control via dedicated application and its WI-FI network.
Thanks to an innovative control of air exchange flows combined with a full inverter control system, the Indi Evo heat pump achieves high quality silence levels.

The heat pump will perform ideally with an air temperature of -7~43 °C; performance is not guaranteed outside this range. The performance and parameters of the heat pump vary according to changing environmental conditions.

• DC inverter rotary compressor

• High efficiency spiral heat exchanger

• WiFi control via app

• Soft starter

• Automatic defrost with smart control

• Efficient temperature control with display visualization

• High and low pressure protection

• Complete electrical circuit protection

• R32 Gas

Water connections:
Inlet: 50 ø
Outlet: 50 ø

Model: Indi Evo V 80T
Recommended pool volume: up to 140 m³
Operating mode: heating and cooling
Operating temperature: -7~43 °C

OPERATING CONDITIONS WITH THE FOLLOWING PARAMETERS: AIR 27°C - WATER 26°C - HUMIDITY 80%:

• Heating capacity: 10.4~32 kW

• Consumption: 0.77~4.9 kW

• Coefficient of performance: 13.5~6.5

OPERATING CONDITIONS WITH THE FOLLOWING PARAMETERS: AIR 15°C - WATER 26°C - HUMIDITY 70%:

• Heating capacity: 6.5~22.5 kW

• Consumption: 0.88~5.0 kW

• Coefficient of performance: 7.4~4.5

Power supply: 380V/3N~/50Hz

Casing: galvanized steel

Compressor: Panasonic rotary inverter

Hydraulic connection: 50 mm

Number of fans: 1

Fan speed: 600-800 rpm

Number of compressors: 1

Sound pressure at 1m dB(A): 48-60

Recommended water flow: 15 m³/h

Pressure drop (MAX): 23.8 kPa
