MX18 CNE PH LED B/B Filtrinov filter block with NNC, electrolysis, and pH regulation

The Filtrinox MX18 monoblock filtration system is a modular filtration unit.

In fact, it is not just a filtration system; it can become the entire pool control unit, from which you can manage filtration, lighting, pH control, salt electrolysis, and counter-current swimming.

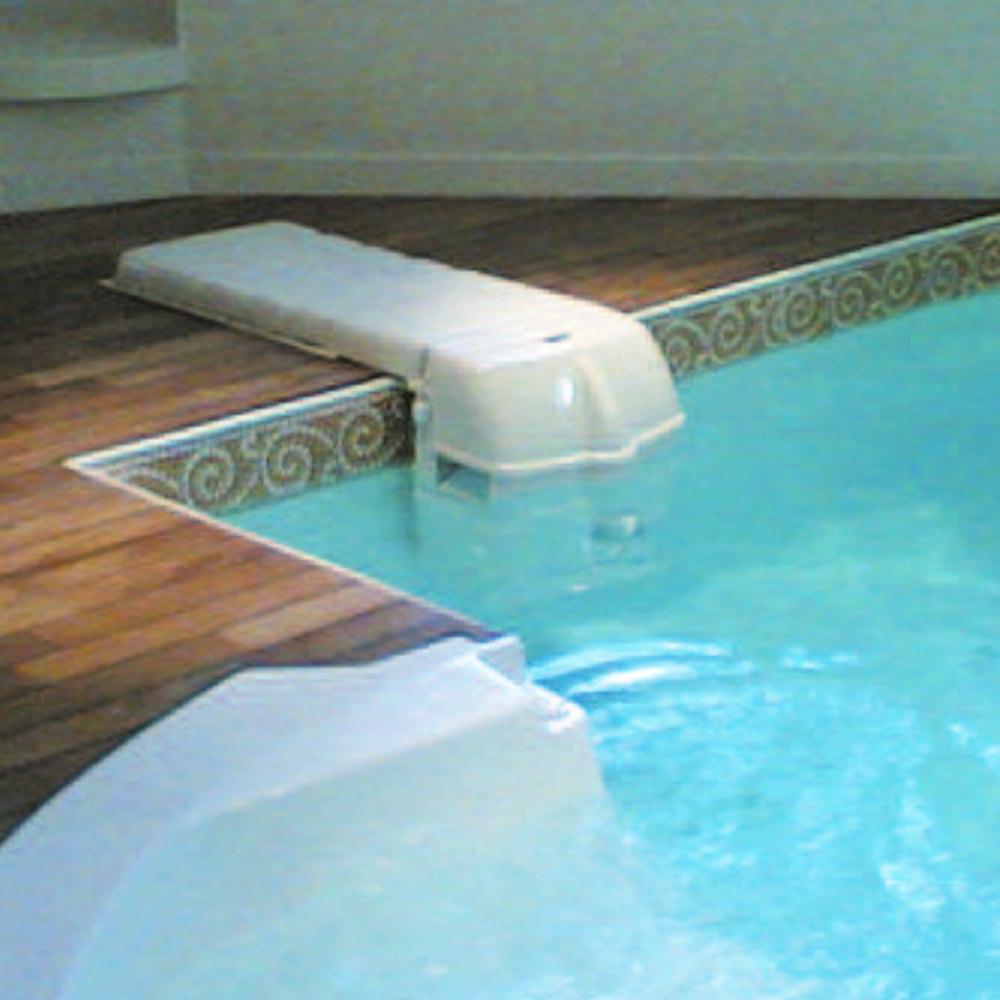

It can be installed straddling any type of pool, with a maximum water volume of 80 m³.
It is recommended for installation in pools not exceeding 9 meters in length.

Installation and commissioning of the MX18 filtration unit are very simple, and pump startup is automatic.

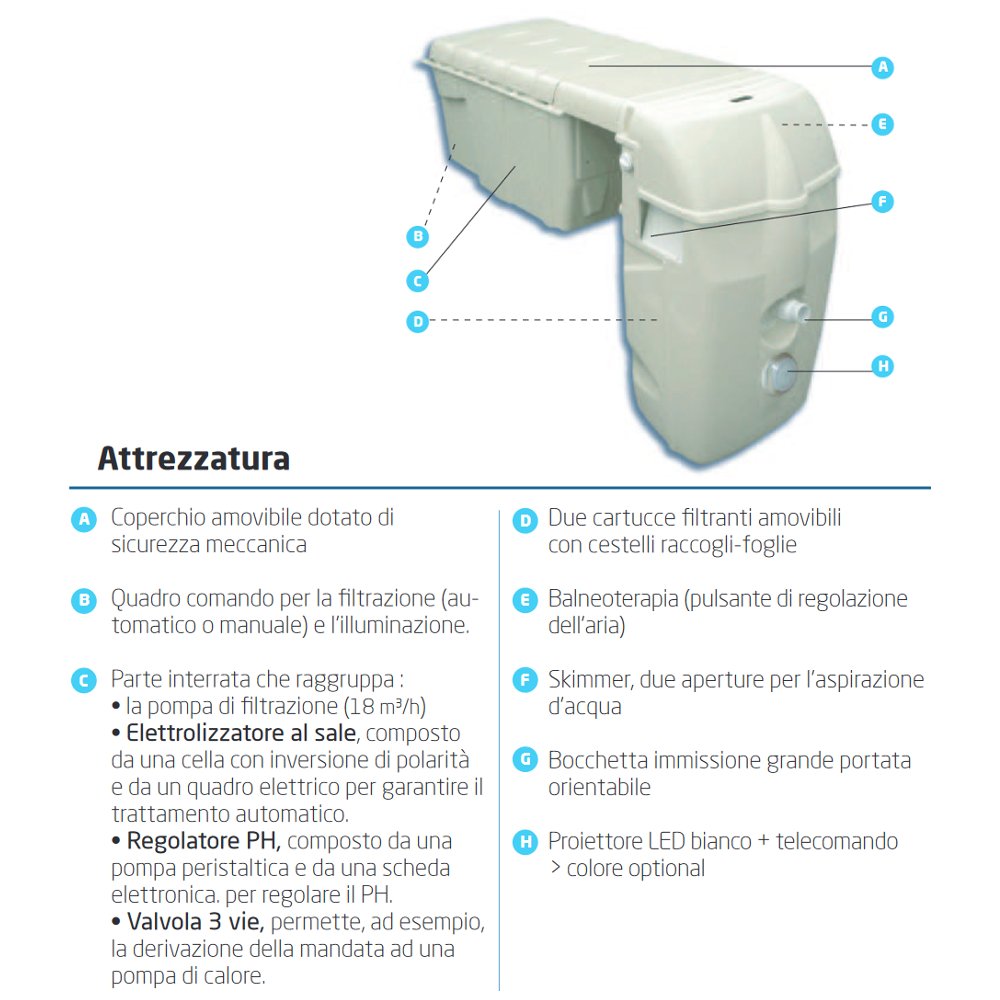

Equipment supplied:

• Removable lid with mechanical safety lock
• Control panel for filtration (automatic or manual) and lighting

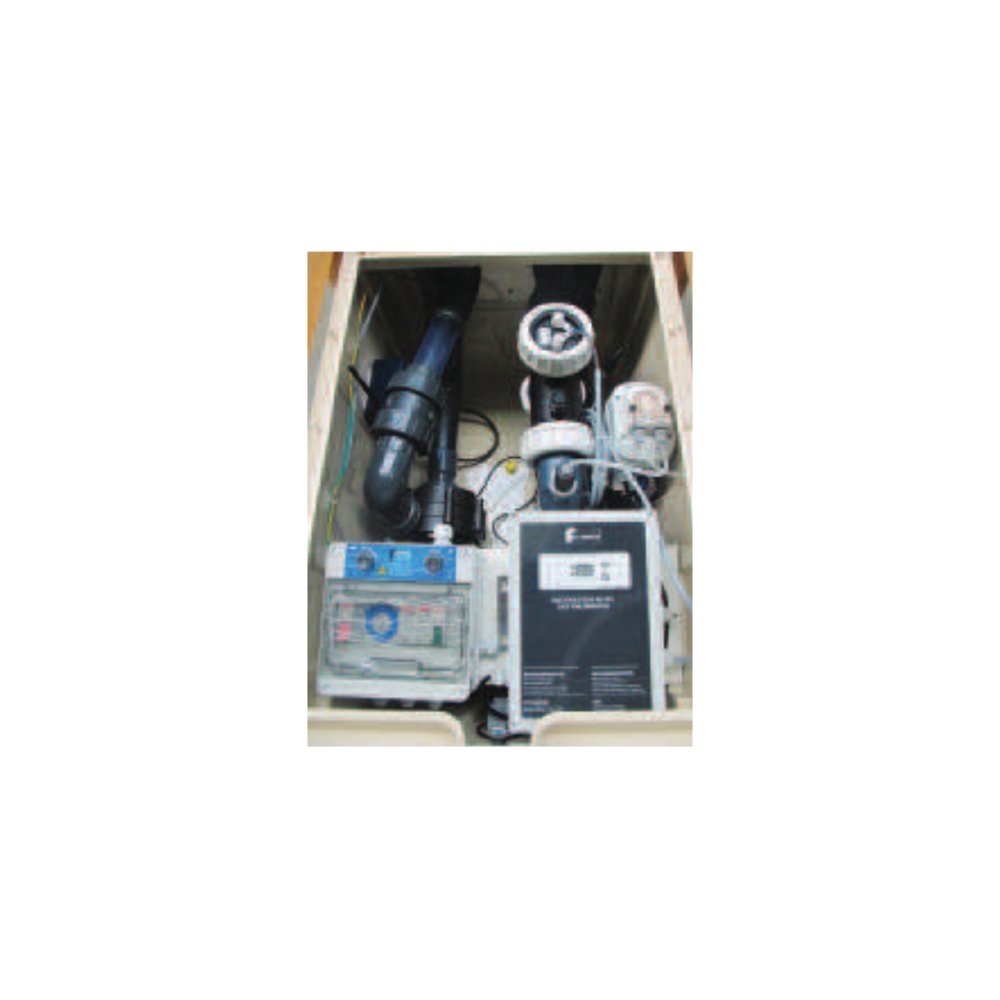

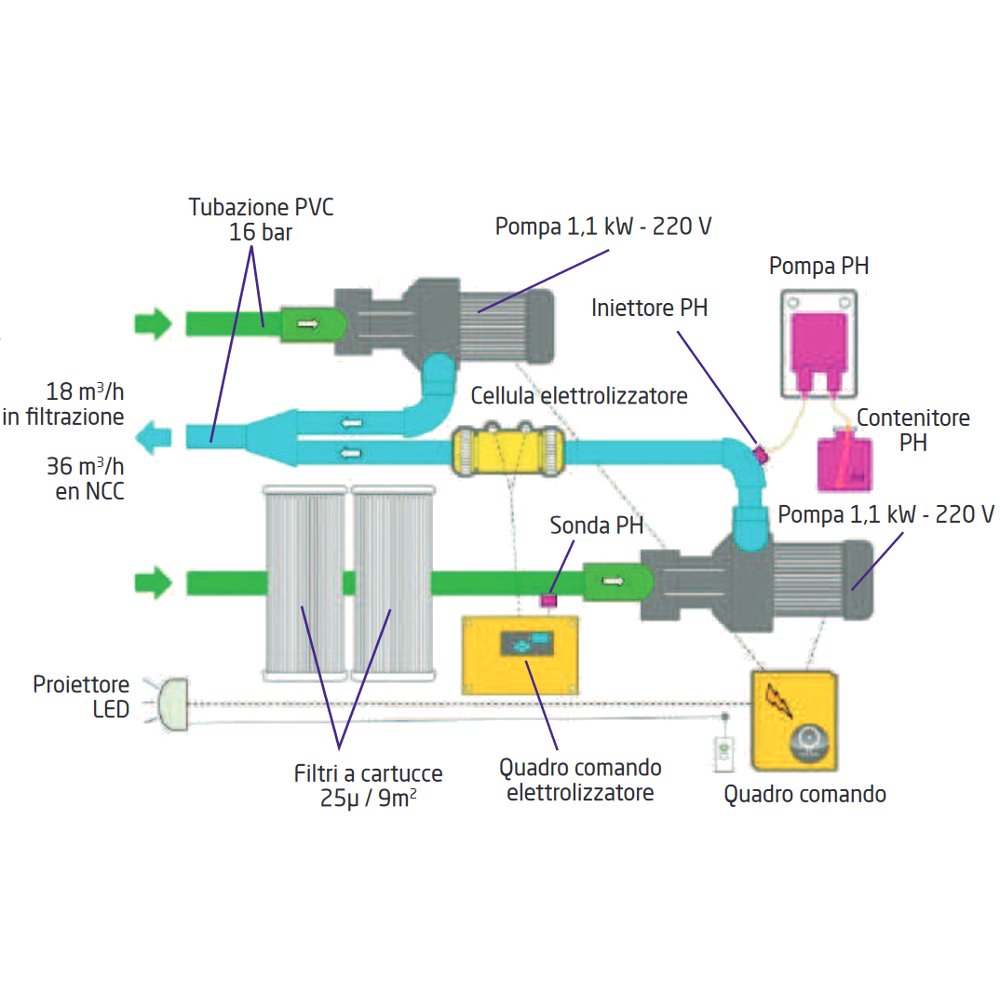

• Underground section housing: Filtration pump (18 m³/h) - Salt electrolyzer, consisting of a cell with polarity inversion and an electrical panel for automatic treatment - Counter-current swimming, powered by a second independent 36 m³/h pump. It can be operated independently of filtration via a pneumatic button - pH regulator, consisting of a peristaltic pump and an electronic board for pH regulation
• Two removable filter cartridges with leaf collection baskets
• Balneotherapy (air regulation button)
• Skimmer with two side openings for water aspiration
• Large capacity, adjustable return jet
• White LED spotlight + remote control

Technical specifications

• Filtration pump 18m3/h – 0.75Kw - 220V
• 2 filter cartridges: filter surface area 9m² - fineness 25µ
• Spotlight: 30 LEDs – 4.5W
• Casing: Thermoformed ABS – PMMA
