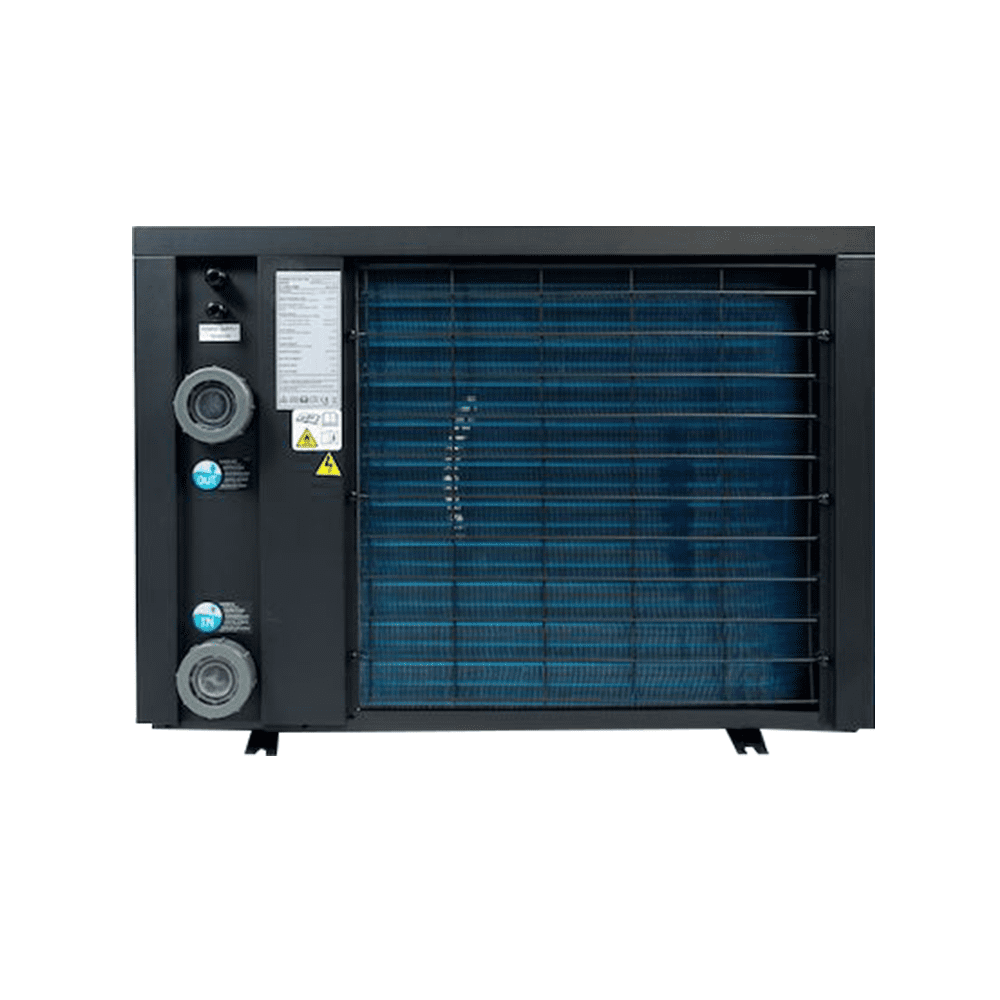

Z250iQ MD3 heat pump

+ Practical and efficient
+ Ideal for extending the pool season

COMPONENTS

• Horizontal air discharge
• Steel structure
• LCD display
• Heating priority mode (filtration pump control)
• Programmed mode
• Inverter technology, variable compressor and fan speed:
  3 operating modes
  - Boost: maximum power for rapid heating
  - Smart: automatic power adjustment relative to temperature
  - Ecosilence: reduced power, further energy saving and lower noise level
• Integrated connectivity via Wi-Fi and Fluidra Pool App.
• Automatic cooling mode (temperature maintenance)
• Automatic defrosting
• Titanium water condenser exchanger
• Inverter and scroll compressor
• DC fan, with variable speed

PERFORMANCE: AIR 28 °C / WATER 28 °C / HUMIDITY 80%
Output power (kW) = 7 - 2
Power consumption (kW) = 1.1 - 0.15
COP = 6.5 - 13.4

PERFORMANCE: AIR 15 °C / WATER 26 °C / HUMIDITY 70%
Output power (kW) = 5.5 - 1.4
Power consumption (kW) = 1.1 - 0.2
COP = 5.2 - 6.4

TECHNICAL DETAILS
Average water flow (m3/h) = 3
Hydraulic connection = 1/2 PVC fittings diam. 50 to glue
Power supply = 220-240V / 1 N / 50-60 Hz
Nominal absorbed current (A) = 4.7
Maximum absorbed current (A) = 8
Power cable** = 3 x 2.5
Refrigerant fluid = R32
Refrigerant quantity (g) = 0.3
Sound power (dB(A)) = 62 - 50
Sound pressure at 10 m (dB(A))*** = 31 - 19

**For a maximum length of 20 m.
***In line with EN60704-1:2010+A11:2012 standards.
