Easy Sand Line kit, DIY pool kit 3 x 11 x h 1.50, skimmer overflow sand filter

EASYBLOK SYSTEM

Thanks to this innovative system, building a reinforced concrete pool is easy, fast and economical.

Rectangular pools can be built, easily accessorized by inserting inlets, skimmers, and lights directly into the walls of EPS (a material with “closed cell” technology, unlike common polystyrene, it guarantees a high degree of resistance to water infiltration and humiditywhich lead to the degradation of the material's structural characteristics).

The available sizes meet every construction need, while also guaranteeing unparalleled ease of installation: it is sufficient to interlock the modules, taking careto reinforce each formwork line. Subsequently, concrete is poured into the formworkto create a true reinforced concrete wall.

Straight modules: length 1.25 m, height 30 cm.
Specifications: Density PS30, estimated cement quantity: 0.12 m³ x m².

The ease of assembling the structure is surprising.

Excavation, concrete, and iron are excluded.

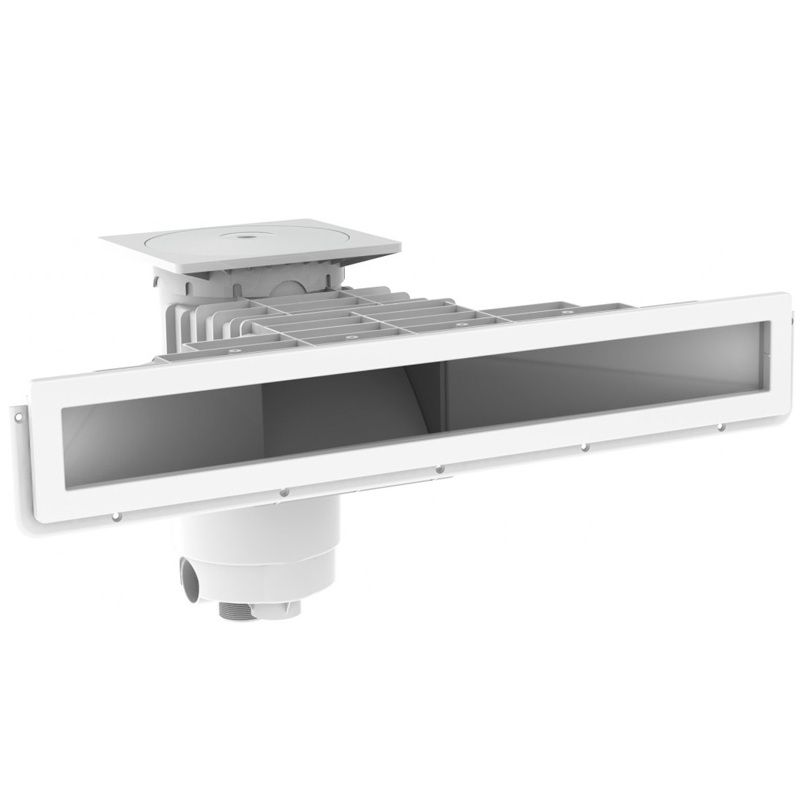

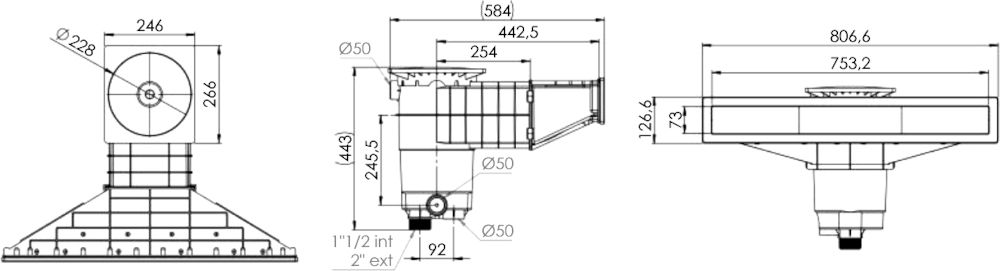

The innovative OVERFLOW SKIMMER system

Overflow skimmer with a very wide suction mouth (approximately 80 cm wide, 7 cm high) for reinforced concrete pools with PVC lining.

Permitted flow rate: from 6 to 10 mc/h.
Material: Made of UV-resistant ABS with a wide mouth.
Positioning: Near the edge (up to 8 cm from the pool edge).

Equipment (Outlets and Connections):
- n.1 threaded outlet Ø 2’M
- 1 glue outlet Ø 50
- Overflow Ø 40
- Level regulator connection Ø 40

Recommendations: installation of an automatic level regulator is recommended.

POOL FEATURES:

Shape Rectangular
Type Skimmer
Length 11m
Width 3m
Structure height 1.5m
Water height 1.40 m as per law
Surface 33m²
Perimeter 28m
Volume 49.5m³

N.B.: The filtration system is supplied unassembled

On base: € 749.00
In technical room: € 1,499.00
In technical room with bypass: € 1,999.00

Accessories and Integrations

Level control: complete with pipes and additional accessories (€ 499.00 additional).
Bluetooth electrical panel: allows you to start and stop the filtration system and lighting via a smartphone app, without accessing the physical panel.

Lighting Customization
It is possible to replace the PAR56 lamps included in the kit with tubular lamps. Design lighting kits can be integrated with these to increase light points:

- Small: +2 tubular lamps
- Medium: +4 tubular lamps
- Large: +6 tubular lamps

Please note: Add the service cost before adding the product to the cart.

LINER DETAILS (PVC SHEET)

Standard shades: white, sand, basalt grey, and medium grey (to be specified at the time of order).
Other shades: available upon request by contacting us directly via e-mail or phone.

The PVC liner supplied in our kits will make your pool elegant and perfectly finished. This lining has a special lacquer that makes it super smooth, resistant to chlorine, UV rays, and atmospheric agents, thus preserving the beauty and vibrancy of the color. Furthermore, it is durable over time thanks to the special polyester reinforcement placed in the center of its various layers. Cleaning interventions are also reduced because the liner is anti-limescale and resistant to attack by sun creams and any microorganisms (fungi/bacteria/spores).

Installation Notes: the liner must be heat-sealed on site using a leister or a heat gun.

Customization: Ladder or Beach
The pool can be customized by choosing between two different access solutions:

- The LADDER is a pre-assembled block, easy and quick to install.
Supplied with plasticized corners for perfect liner installation. Includes a reel of anti-slip PVC reinforced liner for safety.
- The BEACH , on the other hand, needs to be assembled on site. Supplied with plasticized corners for perfect liner installation. Includes a reel of anti-slip PVC reinforced liner for safety. Suitable for creating a beach of maximum 10 sqm.
