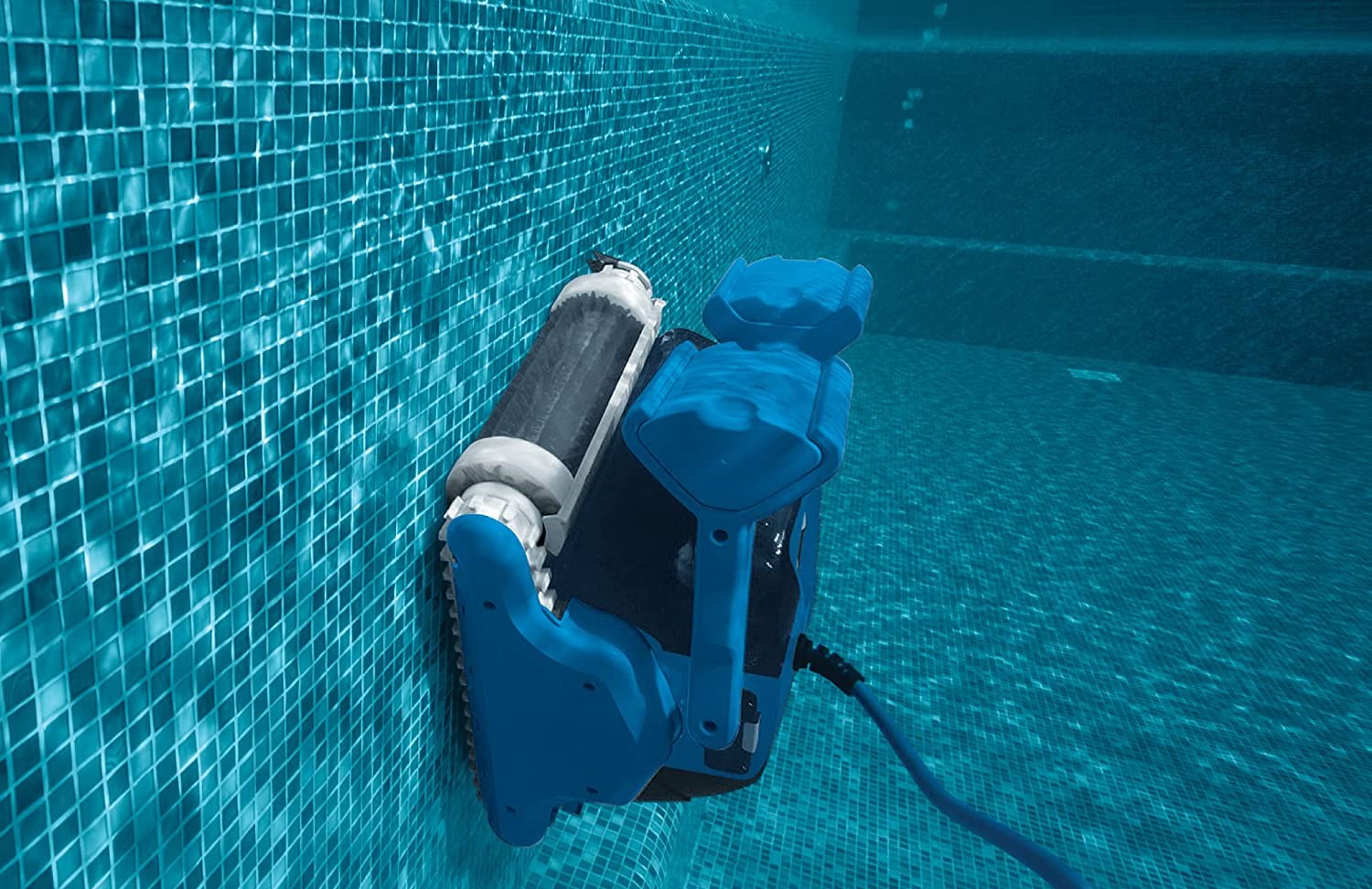

Dolphin F40 pool robot | complete cleaning

Thanks to the lateral translation on the wall, it improves the oxygenation of the water, reducing the consumption of chemical products in season.

Suitable for medium-sized pools up to 12 meters in length with an even bottom or slopes, it is equipped with a double fine cartridge with top extraction, guaranteeing practicality of use.

Coverage of all pool surfaces, thanks to the combined brush complete with kanebo rings, it adapts to PVC liner coverings and mosaic tiles, increasing friction when moving up the wall.

The Dolphin F40 robot is equipped with a swivel cable, the mechanism patented by Maytronics which allows the cable to turn on itself following the movements of the cleaner and avoiding tangling.

Additional variants to adapt the robot to every need (flag the variants of interest to add them to the order):

• KANEBO: the robot mounts sponge brushes to adapt to pools with tile, mosaic or painted concrete coverings. Thanks to these brushes, it avoids slipping while climbing the wall.
• ACTIVE: a third brush is mounted under the robot which spins 30% faster than the others. This active brushing allows you to scrape and clean even the dirtiest or most encrusted areas in an optimal way.
• CADDY: the robot is complete with trolley for transport and for supporting the transformer. A safe and practical solution in the event of a pool far from where the cleaner is usually stored.

For more than 30 years, Maytronics has been a leading manufacturer of pool cleaning robots, offering the widest range of solutions available from a single company, with a Dolphin robot for every type of pool, from small above ground to Olympic size.

Maytronics products adapt to every need and every pool, reaching every corner, climbing up the walls and cleaning the water line.

Why choose Maytronics?

- INNOVATION

- COMPATIBILITY

- PIONEER OF THE SECTOR

- EXPERT SUPPORT


Zavattishop is official sales and assistance, for malfunctions or breakdowns, the robot will be checked directly at our office by our technicians. We check the robots by carrying out accurate tests that allow us to identify any type of defect.

Guaranteed filtration
The modern cartridge filtration system guarantees quality and practicality. The robot vacuums, filters and retains fine dirt.
Thanks to the check valves, the robot is able to retain dirt in large quantities, without ever pouring it into the pool, even when the robot is removed from the water.

Easy and efficient
Advanced technologies offer precise scanning and total cleaning efficiency anywhere up to the waterline, in minimal time and without intervention.

Maintenance DIY
Cleaning the filters after each cleaning cycle, emptying the cartridges and rinsing them under running water and then letting them dry in the sun.
Always keep the impeller free and clean to ensure the proper functioning of the cleaner.

Swivel Tangle free cable
Dolphin Maytronics patent which allows the floating cable not to tangle. The swivel is a plastic component made with a high precision modeling process and equipped with specific components to transfer the electric current and the signal to the robot in a constant and regular way.
The resistant structure of the swivel prevents the electric cable from tangling while the robot moves around the pool. Thanks to the swivel, cable maintenance is simplified and a longer life is guaranteed for the cleaning robot.

Handle equipped with extendable float
The handle is specific for the precise cleaning of swimming pools with slopes and helps the cleaner to maintain the trim during the cleaning cycle.
Wing extension to improve performance and reach areas particularly difficult to clean.
In this way, in less time, the cleaner will easily reach the extremes of the pool.

Tecnichnical Features:

Pools up to 12 meters in length	One Working cycle: 2,5 hours
Bottom, walls and waterline	Wall cleaning with lateral translation
Clever Clean	Plug & Play activation on the transformer
100 micron fine cartridge + 50 micron extra fine	Combined brushes
Filter access from above	Easy maintenance DIY (Do It Yourself)
Cable length: 18m	Swivel Cable
Sensor for swimming pools with beach entrance	Extendable floating handle
Suction power: 17 m3/h	Efficiency and energy saving
Warranty: 24 months + 12 by activating the extension	Assistance tel. or whatsapp 3341491755

Benefits of the Dolphin F40:

• Active brushing of all surfaces: bottom, walls and water line
• It adapts to pools with slopes, particular depths and steps
• Cartridge filter for fine dirt extraction
• Non-return valves to prevent the loss of debris and ensure rapid drainage of water during extraction from the tank
• Clever Clean system of Pool Scan
• Low voltage motor with minimum power consumption
• Automatic shutdown at the end of the cycle
• DIY - easy maintenance "do it yourself"
• Suitable for swimming pools with beach entrance
• Suitable for pools with heights ranging from 40 cm to 5 meters
• Works correctly with temperatures from 6 to 34

Model	Dolphin F40	Dolphin F50	Dolphin F60
Pool Measures	Up to 12 meters	Up to 15 meters	Up to 15 meters
Cleaning Area	Bottom, walls and waterline	Bottom, walls and waterline	Bottom, walls and waterline
Working Cycle	Unique - 2,5 hours	Unique - 2,5 hours	Unique - 2,5 hours
Engine	Single traction motor	Double traction motor	Double traction motor
Cable Lenght	18 m + swivel	18 m + swivel	18 m + swivel
Filtration	Double fine cartridges	2 fine + 2 ultra-fine cartridges	2 fine + 2 ultra-fine cartridges
Brushes	Combined with kanebo rings	Combined with kanebo rings	Combined with kanebo rings
Caddy	Not included	Not included	Included
Programming	No	No	Weekly Timer
App	No	No	My Dolphin Plus
Warranty	3 Years	3 Years	3 Years
